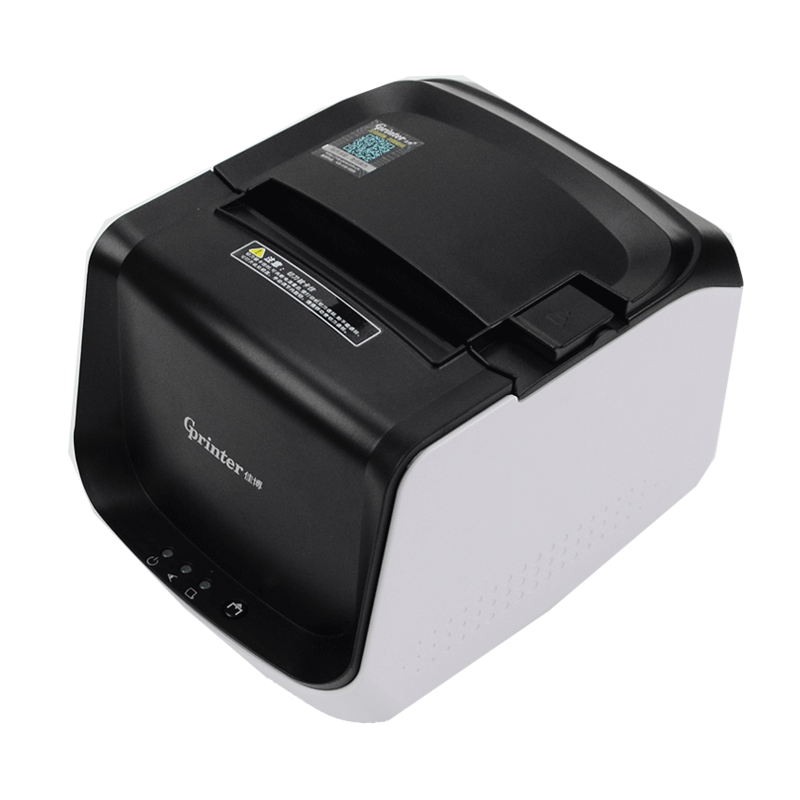

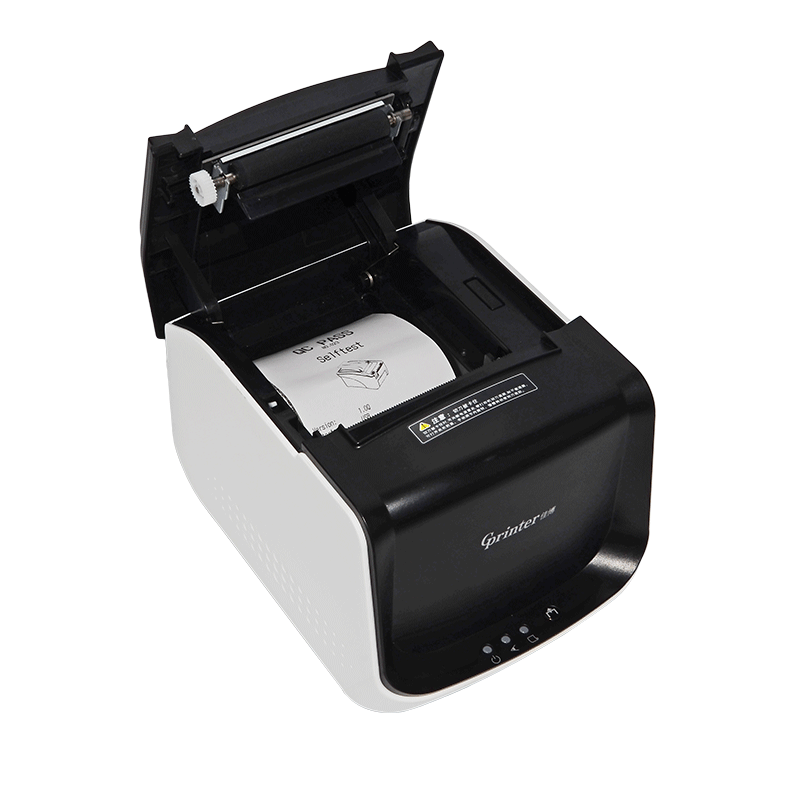

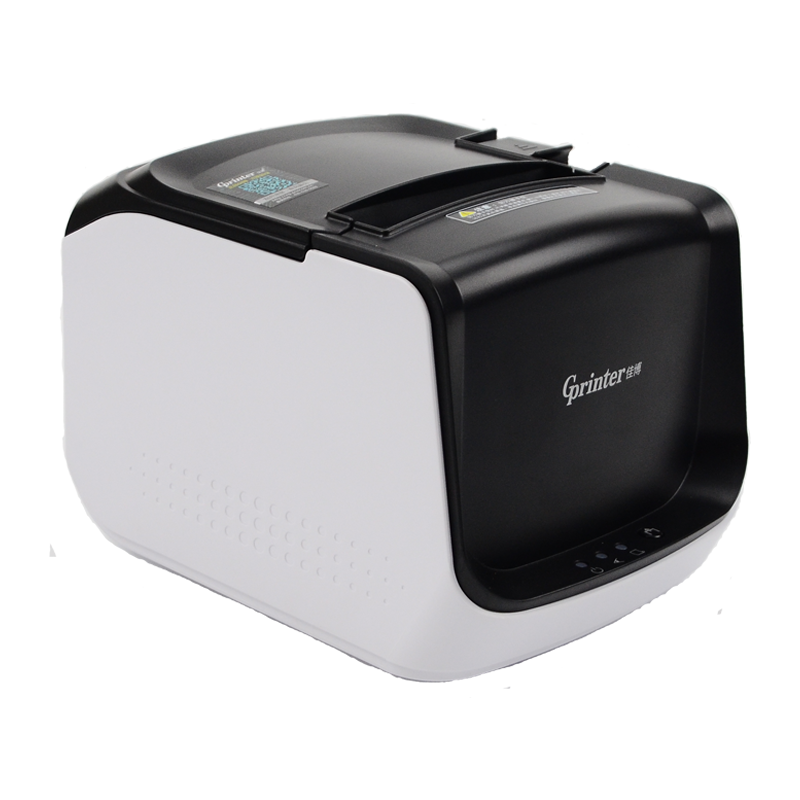

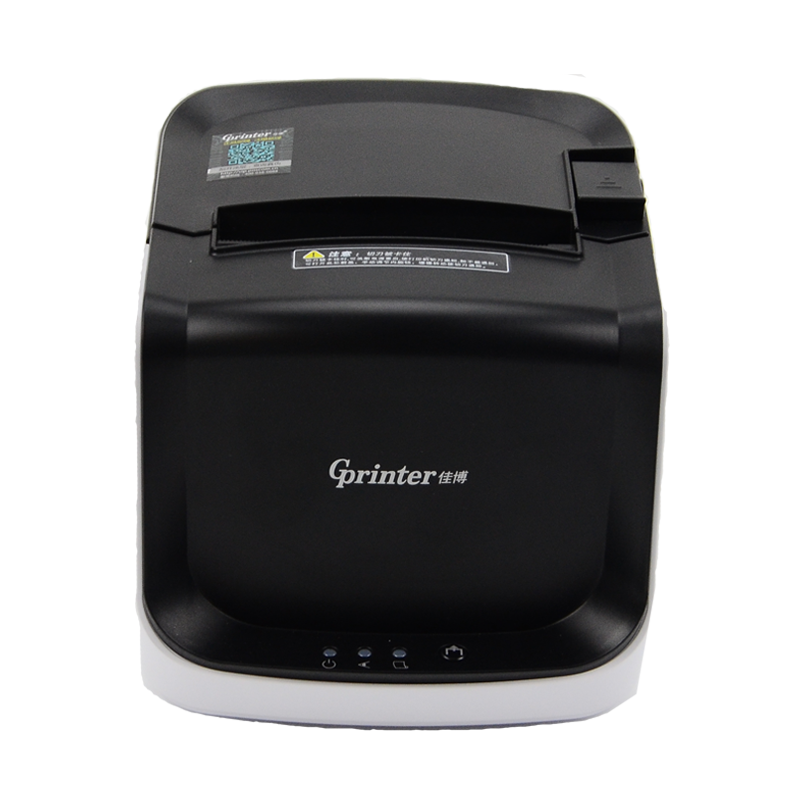

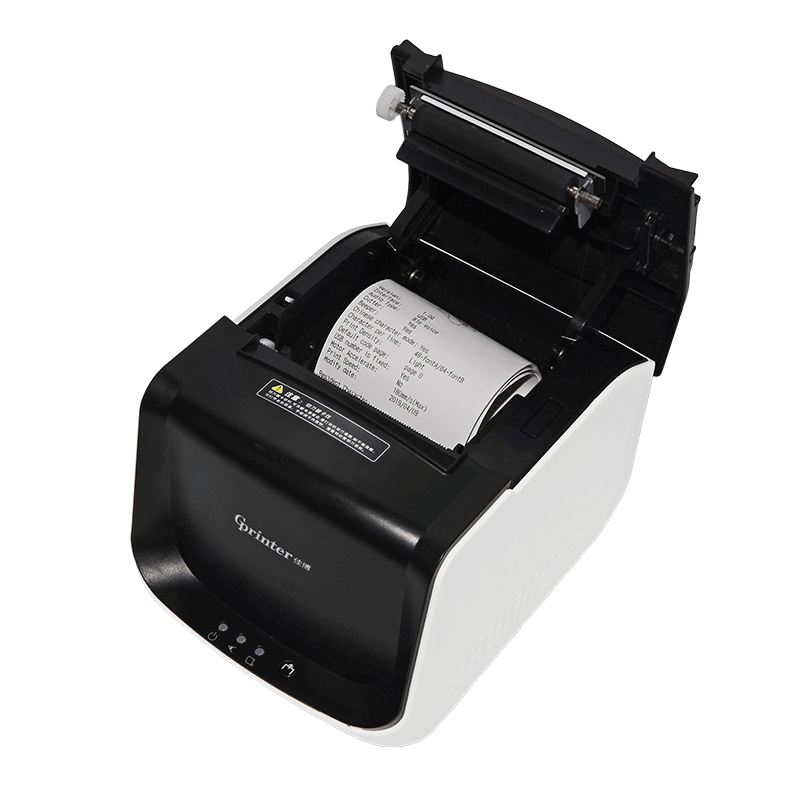

GP-D802

80mm Thermal Receipt Printer


  • perfomance
  • paramenters


• Gainscha's new generation desktop receipt printer
• Intelligent and high performance to meet the needs of mobile Internet
• Various configurations and multiple interfaces, including Bluetooth, Bluetooth audio, Wi-Fi, human voice etc.
• Comes with simplified and traditional Chinese and Korean fonts
• Supports QR Code and PDF417
• More powerful hardware, larger storage memory, higher printing speed
• 250mm/s high-speed printing, meet various needs, wall mount function
• Integrated motherboard with higher reliability and durability.
• Standard GB18030 Chinese character library
• Intelligent voice prompt, simple operation, support Bluetooth audio and human voice
• Support network printing status monitoring, computer multi-connection printing
• Embedded WEB web page, configure printer directly through IE
• Support driver high-speed downloading and printing.
• Comes with auto cutter and tearing blade, support tearing paper and cutting paper, convenient to use


Print method

Direct thermal

Print command

Compatible with ESC/POS commands

Resolution

203DPI

Print speed

250mm/s

Print width

72mm

Print head temperature detect

Thermal sensitive resistance

Print head position detect

Microswitch

Black mark sensor

Reflective sensor

Paper detect

Transmissive sensor

Memory

FLASH:60K

Interface

Standard: USB+Ethernet
Optional:
USB+Ethernet+Wi-Fi
USB+Ethernet+Bluetooth
USB+Ethernet+Human voice
USB+Ethernet+Wi-Fi+Human voice
USB+Ethernet+Bluetooth+Human voice

Graphics

Support different density bitmap printing

Bar code

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ITF/CODABAR/CODE39/CODE93/CODE128/QRCODE/PDF417

Character set

Simplified Chinese GB18030
Traditional Chinese BIG5
Korean KSC5601

Character enlargement/rotation

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Media type

Thermal roll paper

Media width

79.5士0.5mm

Media thickness

0.06-0.08mm

Media roll outer diameter

Max. 83mm

Media output method

Top paper output, partial-cut

Power supply

Input: DC24V 2.5A

Working environment

0~40℃, 30%~90% non-condensing

Storage Environment

-20~55℃, 20%~93% non-condensing

Printer weight

1.92kg

Printer dimension

205mm×148mm×138mm

Packing dimension

260mm×210mm×230mm

Print head (reliability)

50km

Printer certificate

CCC, CE, FCC, RoHS, SRRC

* The above parameters are subject to change without notice.
