Model

GP-9134T

GP-9135T

Applications

Supermarket, catering, clothing, logistics, tea, baking chain stores, etc.

Print mode

 Direct thermal / Thermal transfer

Print command

TSPL

Resolution

300DPI

Print speed

2~5inch/s

Print width

80mm（max）

Overheat protection sensor

Yes

Paper detect sensor

Yes

Black mark detect sensor

Yes

Head open detect sensor

Yes

Media end error sensor

Yes

Memory

DRAM:8MB FLASH:4MB

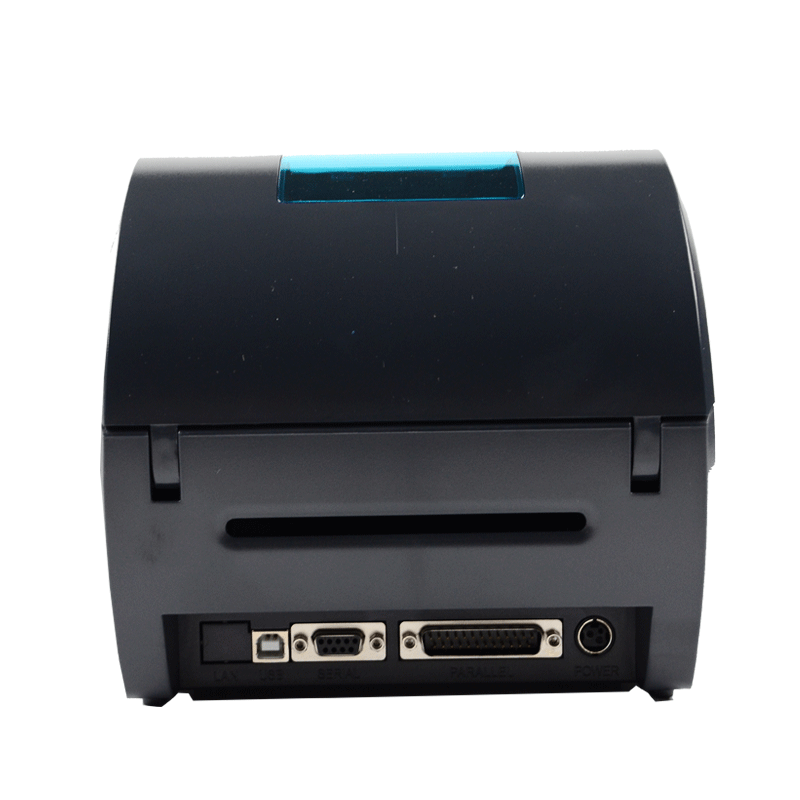

Interface

Serial+USB+Parallel (standard)

USB+Parallel+Serial+Ethernet (standard)

USB+Bluetooth, USB+Wi-Fi (optional)

Graphics

Monochrome PCX, BMP and other graphics files can be downloaded to FLASH/DRAM

1D Barcode
2D Barcode

CODE128、EAN128、ITF、CODE39、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14、QRCODE

Character set

Common single-byte fonts: FONT 0 to FONT 8

Character enlargement /
Rotation

1 ~10 times enlargement in portrait and landscape orientation;  0°, 90°, 180°, 270°degree rotation

Media type

Continuous, die-cut, fan-fold, black mark

Media width (include backing paper)

Max.100mm (3.54"), Min.20mm (0.78")

Media roll OD

127mm（5"）OD

Media thickness

Max.0.254mm ((10mil).  Min.0.06mm (2.36mil)

Media roll core size

1inch（25.4mm）

Ribbon OD

Max.67mm

Ribbon length

300m

Ribbon core size

1inch（25.4mm）

Ribbon width

Max.90mm，Min.30mm

Ribbon rolling up method

Outward rolling

Media handling

  Tear off

Media output method

Front paper output

Power supply

input: DC24V 2.5A

Operation condition

5~40℃, 20~90%RH

Storage condition

-25~55℃, 20%~93%RH

Printer weight

2.04kg

Printer dimension

290×195×180mm

Packing dimension

370×260×235mm

Print head (reliability)

30km

Printer certificate

CCC, CE, FCC, RoHS, SRRC

CCC, CE, FCC, RoHS
