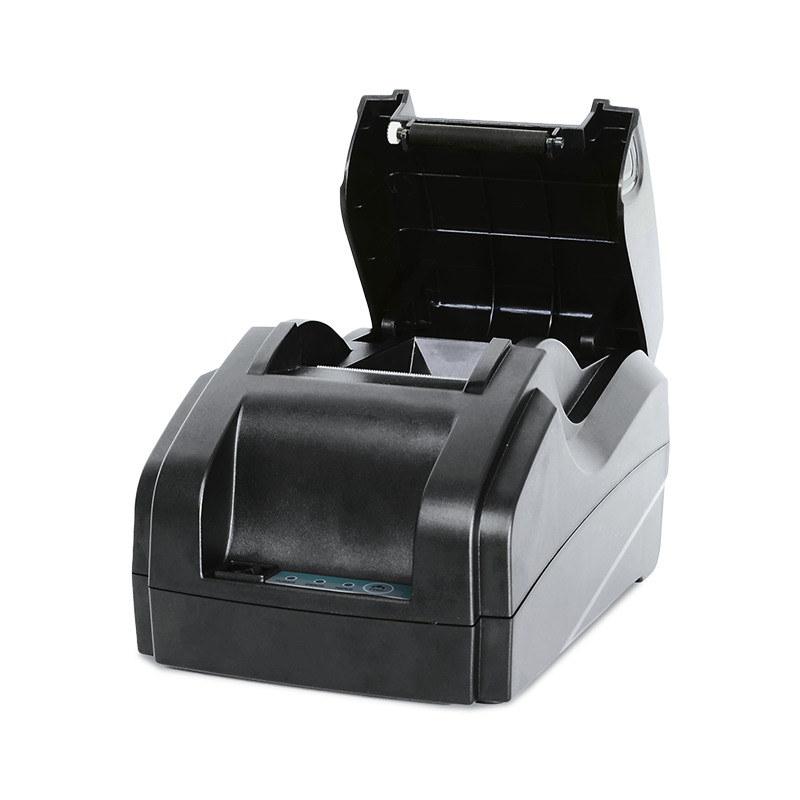

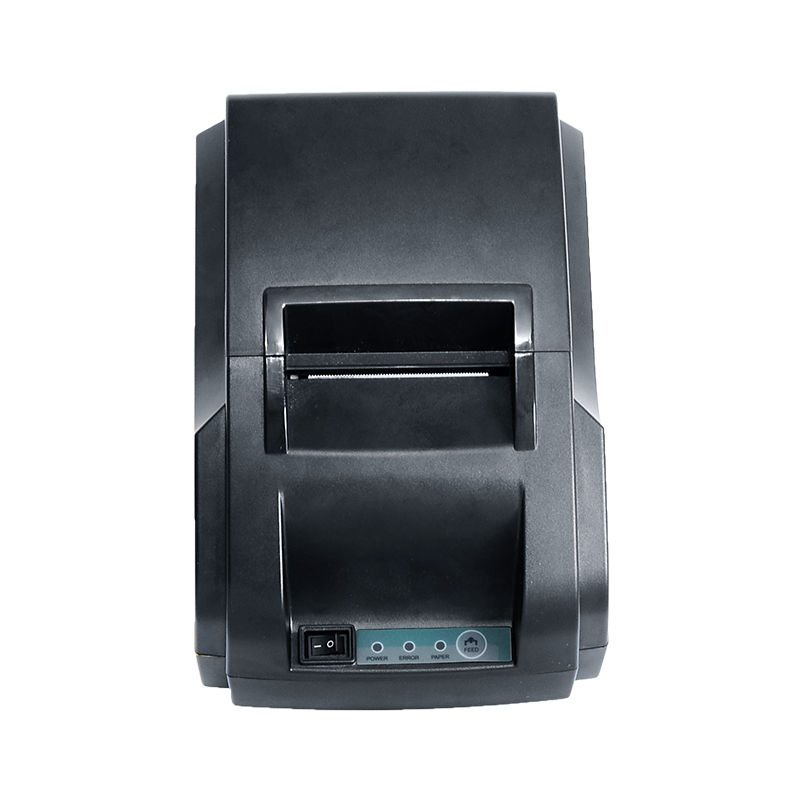

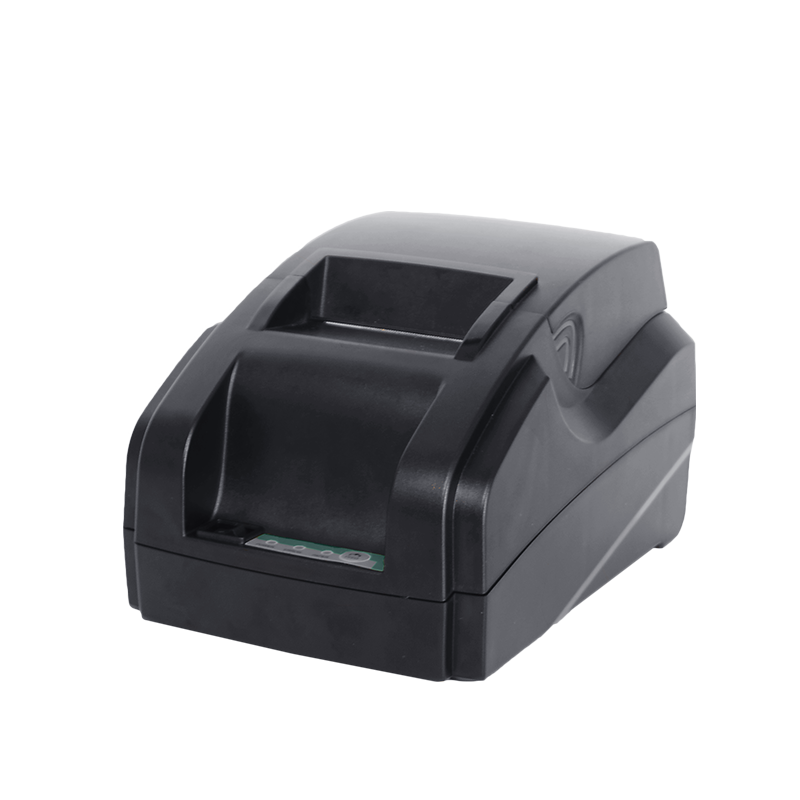

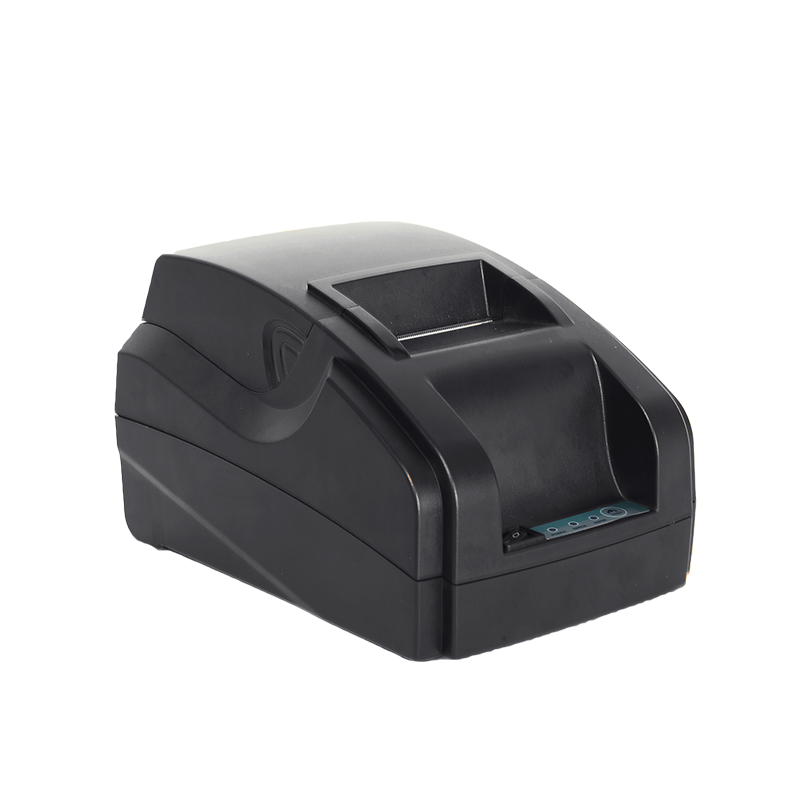

GP-58D

58mm Thermal Receipt Printer


  • perfomance
  • paramenters


• Support 26 international language character printing.
• Printing status monitoring, the host can keep abreast of the working status of the printer in time.
• New 15 ESC/POS commands have been added based on the 40 ESC/POS commands of old printer, which makes the printing layout and effect control more convenient, more flexible, and more compatible.
• Characters can be enlarged 1~8 times, bolded, underlined, 90°rotated , inverted, black and white reversed, etc.
• High speed printing of driving graphic
• Support win9x, win2K, WinXP, Win2003, WinVista x32 and x64 system drivers.
• Support Linux system driver.
• Built-in a variety of font libraries, optional GB18030 simplified Chinese/BIG5 traditional Chinese/Korean/Japanese font library.


Print method

Direct thermal

Print command

Compatible with ESC/POS commands

Resolution

203DPI

Print speed

70mm/s

Print width

48mm（max）

Print head temperature detect

Thermal sensitive resistance

Print head position detect

Microswitch

Paper detect

Photoelectric sensor

Memory

FLASH:60K

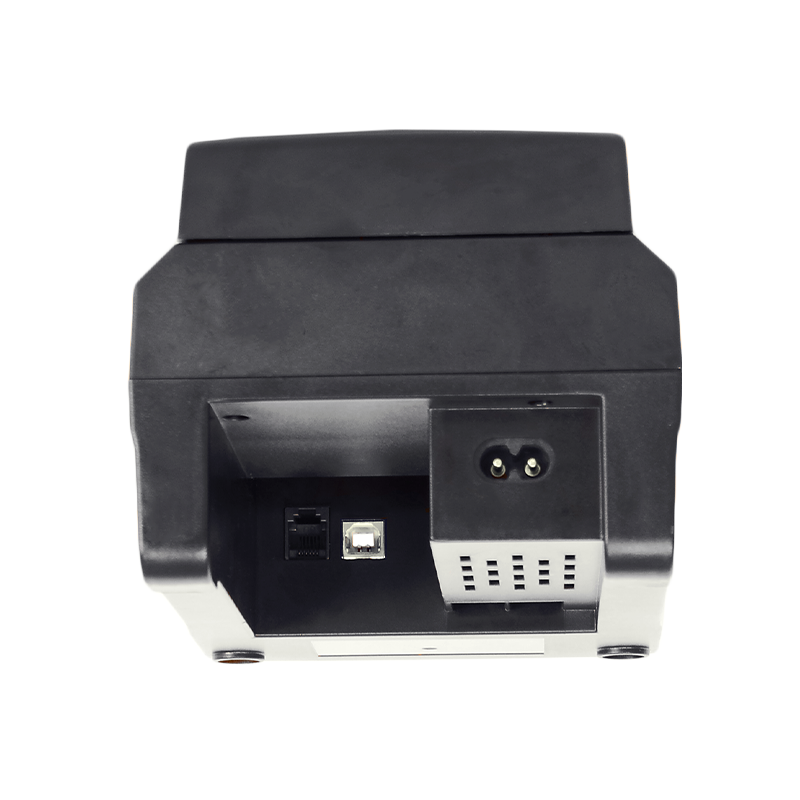

Interface

Standard:USB
Optional:Parallel

Graphics

Support different density bitmap printing

Bar code

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ITF/CODABAR/CODE39/CODE93
/CODE128/QRCode

Character set

ANK character:
Font A: 12×24 dots
Font B: 9×17 dots
Simplified/Traditional Chinese: 24×24 dots

Character enlargement/rotation

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Media type

Thermal paper

Media width

57.5+0.5mm

Media thickness

0.06~0.08mm

Media diameter

60mm

Media output method

Top paper output

Power supply

Input: DC 8.5V/1.5A

Cash drawer output

Output: DC 12V 1A

Working environment

0~40℃, 30%~90% non-condensing

Storage Environment

-20~55℃, 20%~93% non-condensing

Printer weight

0.56kg

Printer dimension

182mm×133mm×113mm

Print head (reliability)

50km

Printer certificate

CE, FCC, CCC, RoHS
