• Direct thermal receipts can be printed in anytime, support picture printing
• 1000mAh,3 days standby time
• Mini body design and can be easily carried

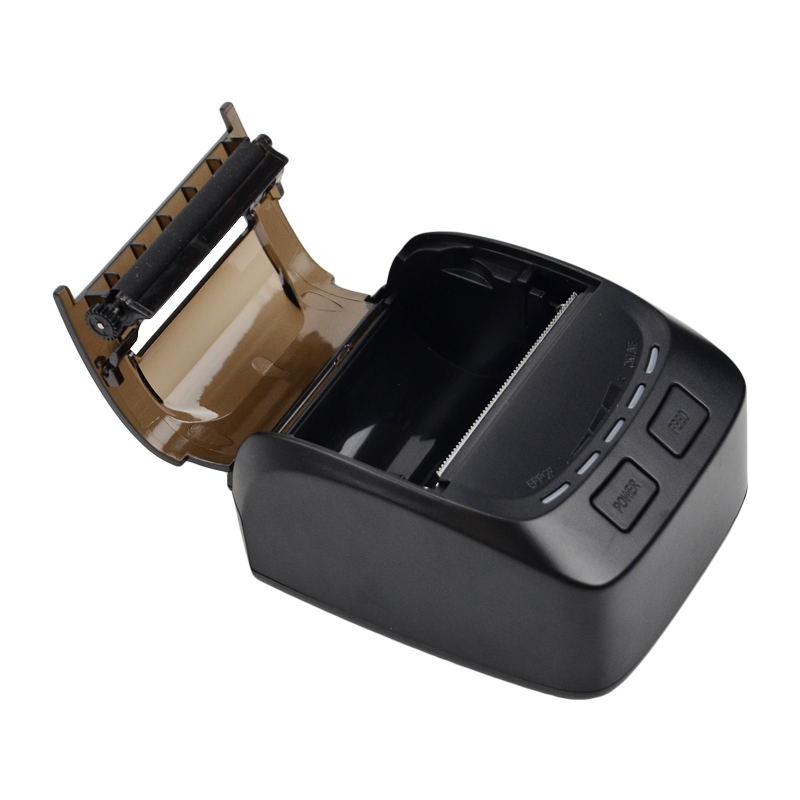

• Easy to load paper, simple to use and easy to operate
• Standby mode could last for max. 3 days (depends on interfaces connection factor)
• Support 58mm direct thermal paper, paper thickness 0.06 ~ 0.08mm
• LED can indicate printer error, power, charging and communication connection status
• Provide free DLL, SDK, app Demo for integration and developments
Print method | Direct Thermal |
Print command | ESC/POS |
Resolution | 203DPI |
Print speed | 60mm/s(max) |
Print width | 48mm |
Print head temperature detect | Thermistor |
Print head position detect | N/A |
Paper detect | Reflective Sensors |
Sensor position | Keep Right |
Memory | SRAM:96K FLASH:8M |
Display | N/A |

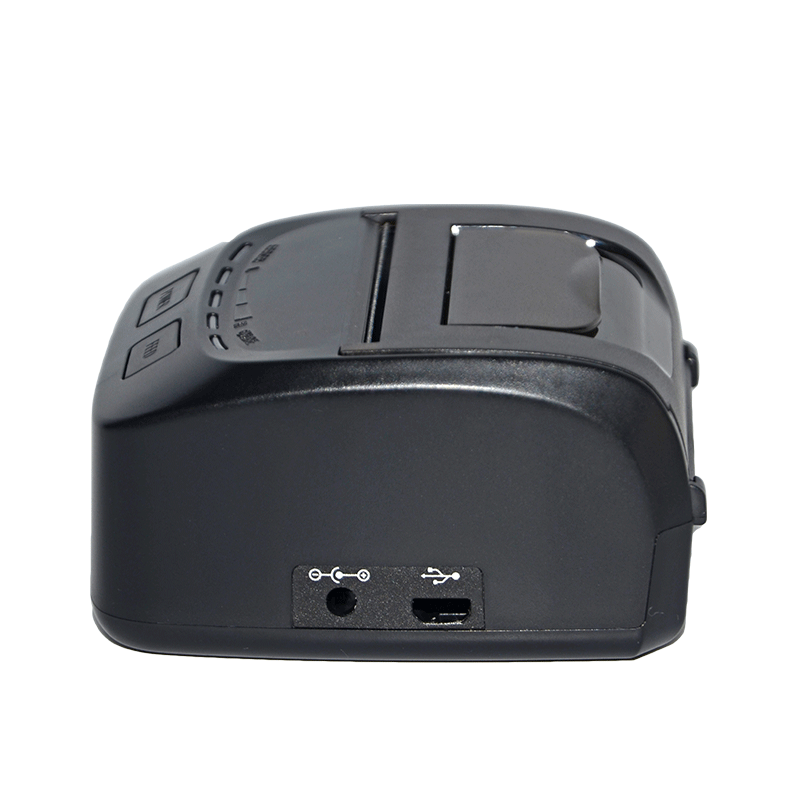

Interfaces | USB+Bluetooth |
USB Port Spec. | Micro USB |
Printing Width & Length | N/A |
Graphics | Support different density bitmap printing |
1D Barcode | UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), ITF, CODABAR, CODE39, CODE93, CODE128 |
2D Barcode | QRCODE |
Character set | ANK Fonts: Font A:12x24dot FontB:9x17dot |
Korean, Simplified Chinese, Traditional Chinese: 24x24dot | |
Character enlargement / Rotation | 1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing |
Media type | Continuous paper, front black mark paper |
Media width | 58mm |
Media diameter | 30mm |
Media output method | Top paper output |
Power | Input:DC 5V 1A |
Charging Time | Less than 2hrs |
Battery Standby Time | N/A |
Battery Working Time | N/A |
Battery Capacity | 7.4V/1000mAh |
Working environment | 5~40℃,20~90%RH |
Storage environment | -25~55℃,20~93%RH |
Pressure | 86-106kPa |
Printer weight (with battery) | 165g |
Printer Dimensions | 92mm×80mm×47mm |
Packing dimension | 195mm×157mm×66mm |
Print head (reliability) | 50km |
Printer certificate | CCC, SRRC, RoHS, UN38.3 |
