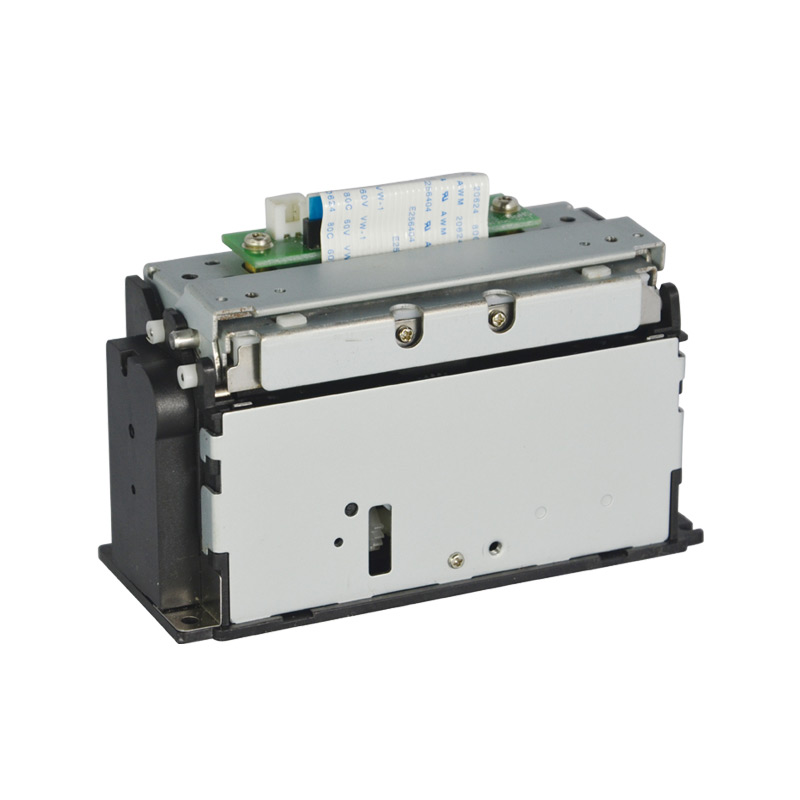

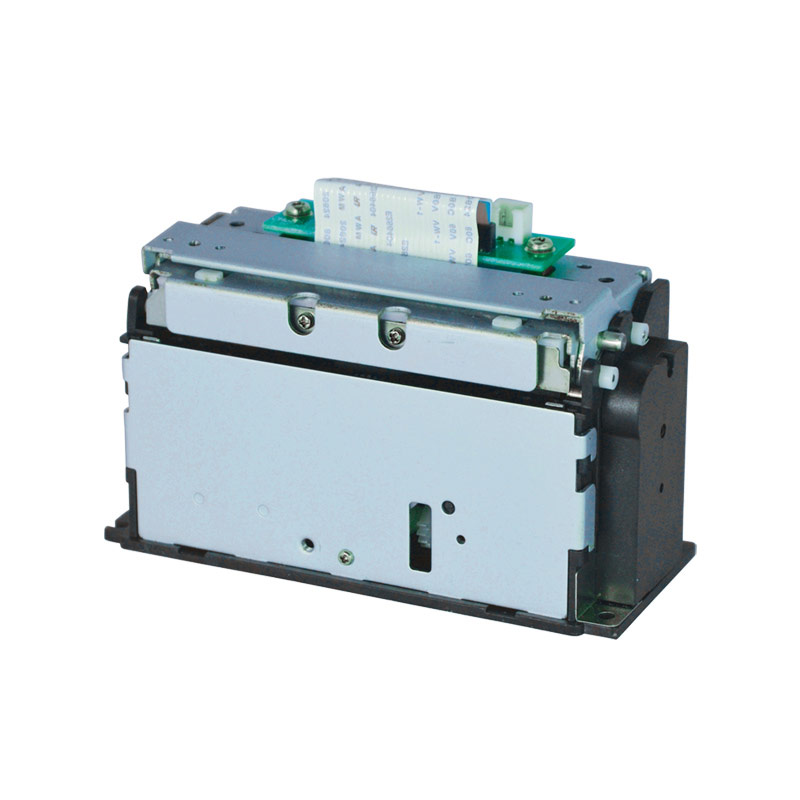

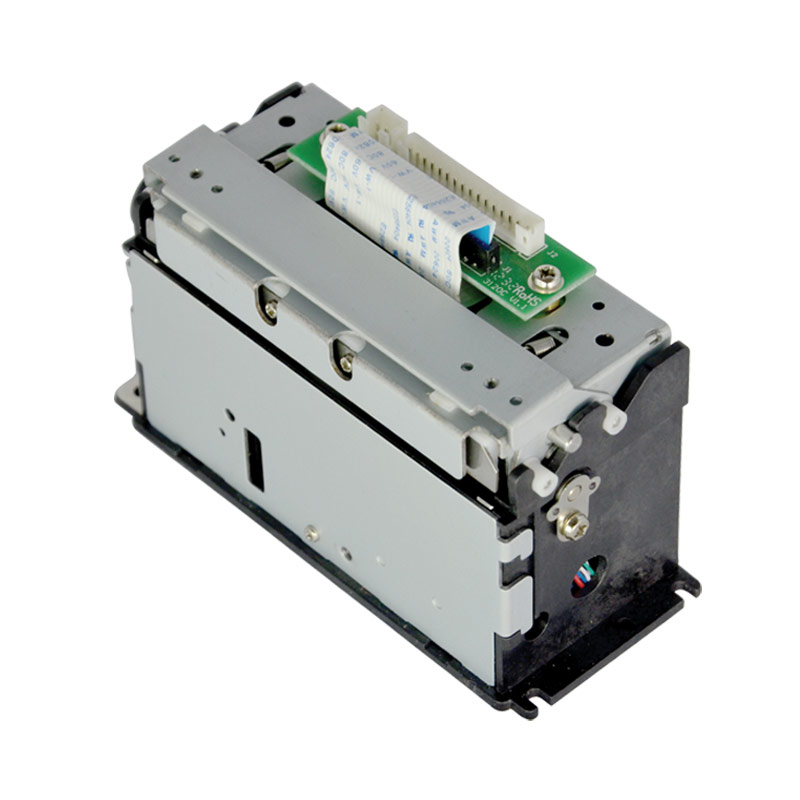

SID-3250HIII

80mm Front Feeding Mechanism


  • perfomance
  • paramenters


• 80mm Paper Width
• Printing Speed: 300 mm/sec
• Front feeding paper design: This convenient Printing Method is more suitable for under-counter printing, queuing machines, and embedded device printing
• Easy paper loading structure design: with automatic cover opening structure, the printing roller can be easily removed, and paper can be loaded easily
• Printing reliabilities: The printing mechanism is up to 150 kilometers , the pulse excitation is up to 100 million times
• Cutter reliabilities: 1.5 million cuts
• Low noise: compact structure design, low printing noise
• Paper roll drag force: large motor paper feeding structure, can drag large paper rolls with a diameter of 120mm without losing gear step
• Product compiled ROHS standard


SID-3250HIII

Printing Parameters

Printing Method

direct thermal

dot per line

640dot

Resolution

203DPI

max. printing speed

300mm/sec

effective printing width

80mm

paper width

80mm

feeding distance

0.125mm

paper path

straight feeds

Detections

Print Head Sensor (Temp.)

detected by thermistor

roller position

Detected by mechanical switch

paper end detections

Detected by photoelectric sensor

Cutter resetDetections

Detected by mechanical switch

Operating Voltage

Logic voltage

5V

Thermal printing head printing voltage

24V

Peak current

printer head

5.01A（26.4V/128dot）

motor

0.40A /Phase

cutter

1.20A

Auto-Cutter

method

Sliding type

paper thickness

0.054 ~ 0.120mm

cutting method

full cut or partial cut (leave the center point)

Working period

0.4s/cut

Cutting length

10mm

cutter frequency

60cuts/min

Reliabilities

Pulse excitation

100 million or more

TPH (Reliabilities)

150km or more

cutter

1.5 million cuts

Operation Condition (RH)

Temperature: 5 ~ 45℃， Humidity:10 ~ 80%

Storage Condition (RH)

Temperature: -10 ~ 50℃ ，Humidity:10 ~ 90%

Dimensions

117×48.2×72.6mm

Weight

Approxi 356g

* The above parameters are subject to change without notice.
