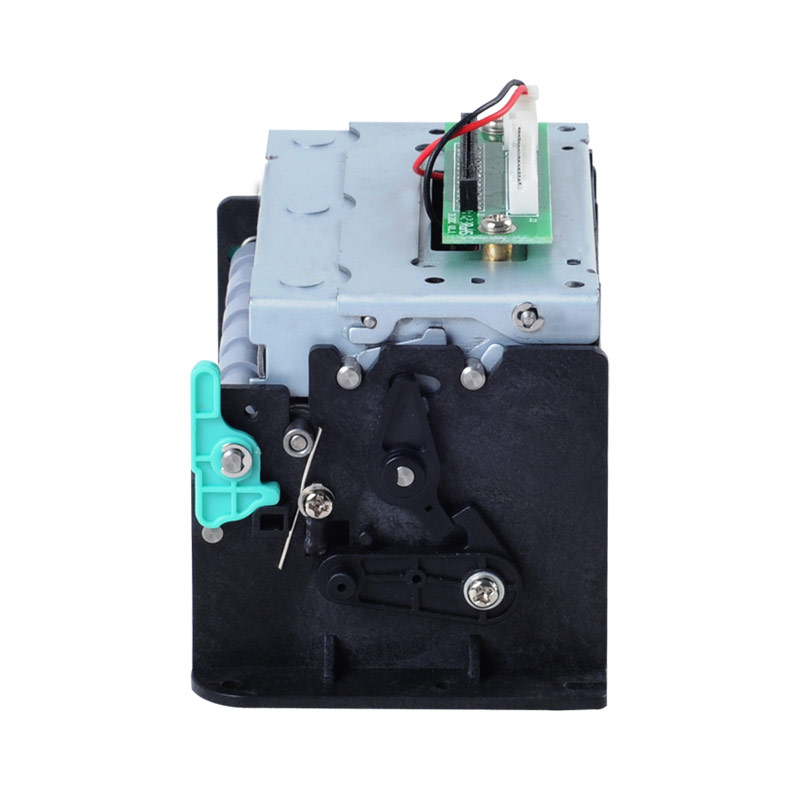

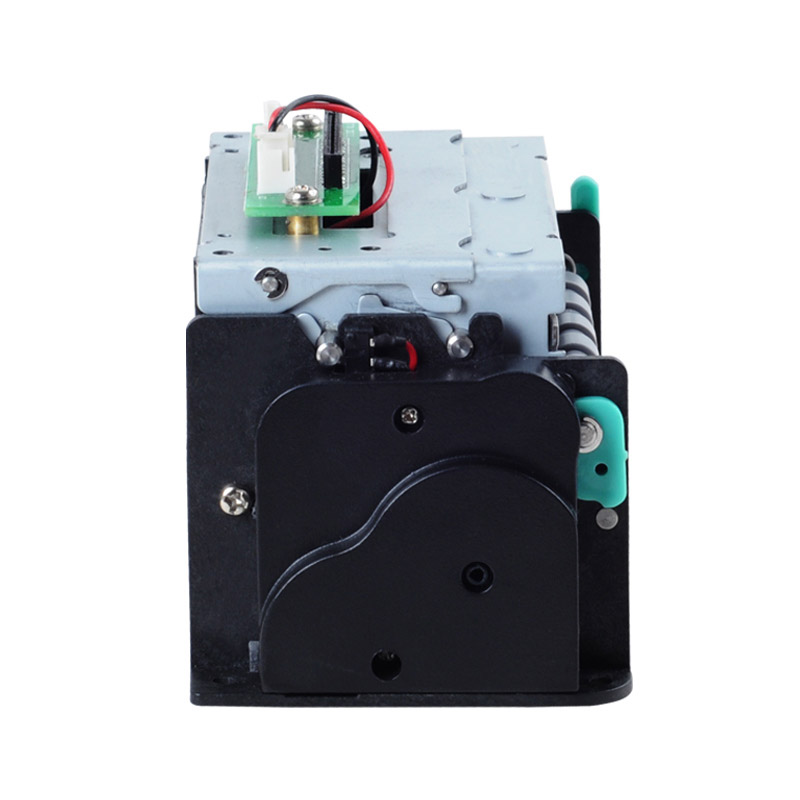

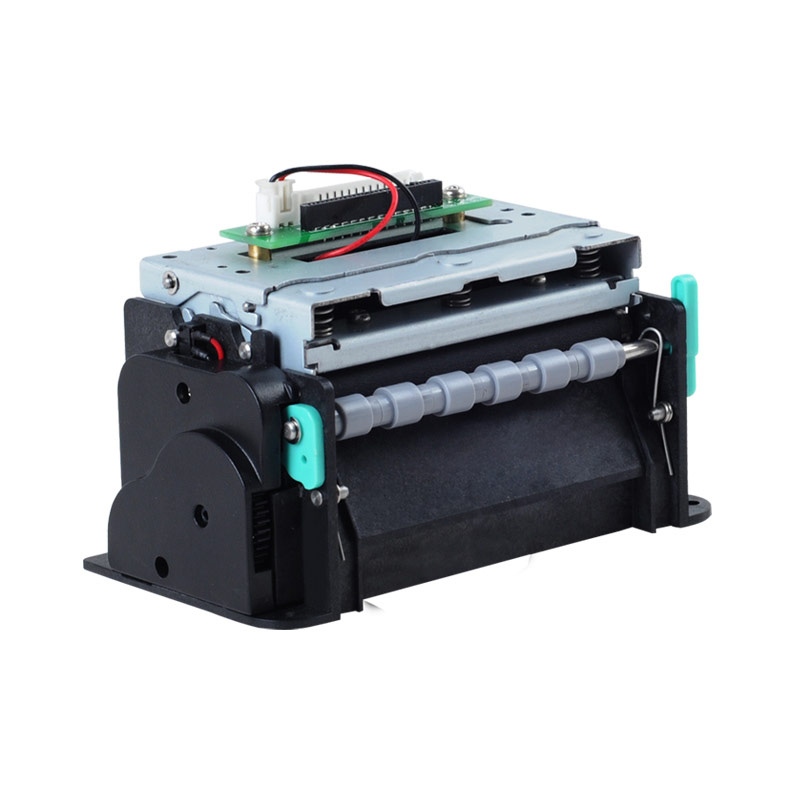

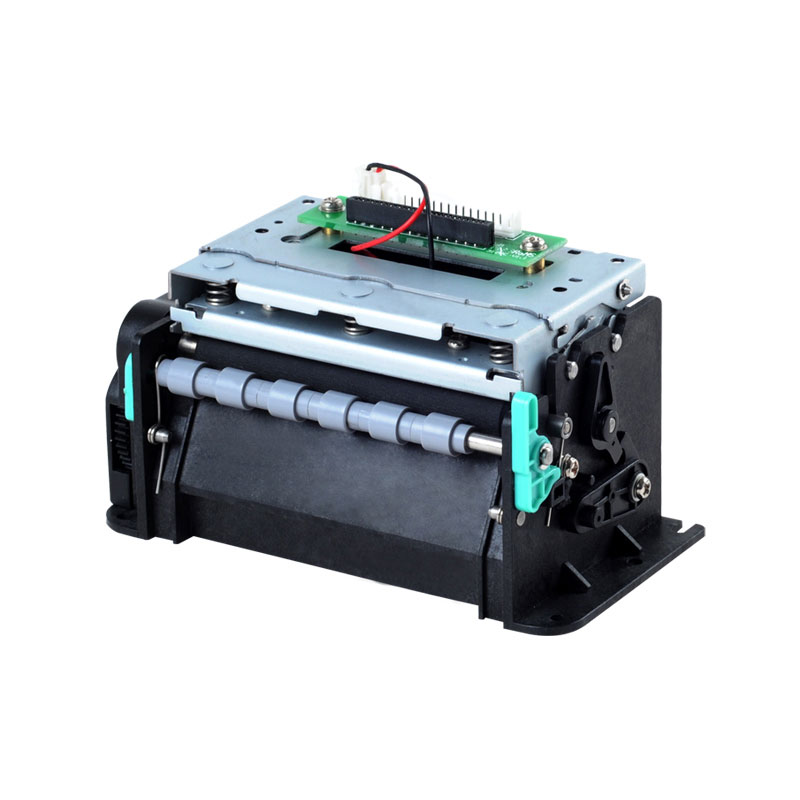

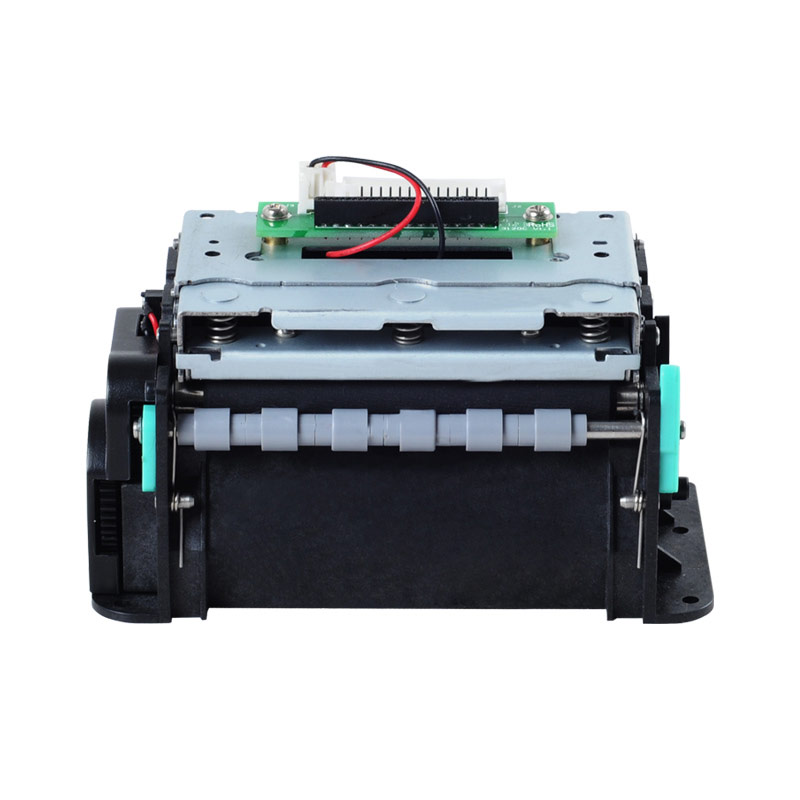

SID-3120TIII

80mm Barcode Printer Mechanism


  • perfomance
  • paramenters


Product introduction:
It is a 80mm thermal  barcode label printer mechanism, printing speed 150mm/sec, widely used in postal, automatic ticketing, logistics barcode, hotel management system, medical industry, coffee shop, bakery label printing and so on.

Product Features:
• Printing Speed: 150mm/sec
• Label paper width 25-82.5mm adjustable
• Thermal barcode label printing: Resolution203DPI, clear printing effect,
• Two kinds paper feeding methods: provide peel and tear-off two paper feeding methods
• High-speed printing: The printing speed reached 150mm/sec
• Printing life: The printing reliabilities for mechanism is up to 150 kilometers, and the pulse excitation reaches 100 million times
• Low noise: compact structure design, low printing noise
• Paper roll drag force: large motor paper feeding structure, can drag large paper rolls with a diameter of 100mm without losing gear step
• Product compiled ROHS standard


SID-3120TIII

Printing Parameters

Printing Method

direct thermal

dot per line

640dot

Resolution

203DPI

max. printing speed

150mm/sec

effective printing width

80mm

paper width

25-82.5mm

feeding distance

0.125mm

paper path

straight feeds

paper type

Thermal roll paper, label paper, etc.

paper output method

manual peeling or tearing off

Detections

Print Head Sensor (Temp.)

detected by thermistor

roller position

Detected by mechanical switch

paper end detections

Detected by photoelectric sensor

Black mark detections

Detected by photoelectric sensor

Operating Voltage

Logic voltage

5V

Thermal printing head printing voltage

24V

Peak current

printer head

15.03A（26.4V/384dot）

motor

0.50A

Reliabilities

Pulse excitation

100 million or more

TPH (Reliabilities)

150km or more

Operation Condition (RH)

Temperature: 5 ~ 45℃， Humidity:10 ~ 80%

Storage Condition (RH)

Temperature: -10 ~ 50℃ ，Humidity:10 ~ 90%

Dimensions

128.8×68.5×80.6mm

Weight

Approxi 435g

* The above parameters are subject to change without notice.
