• Compact design, support handheld, hang on the chest, clip on the waist

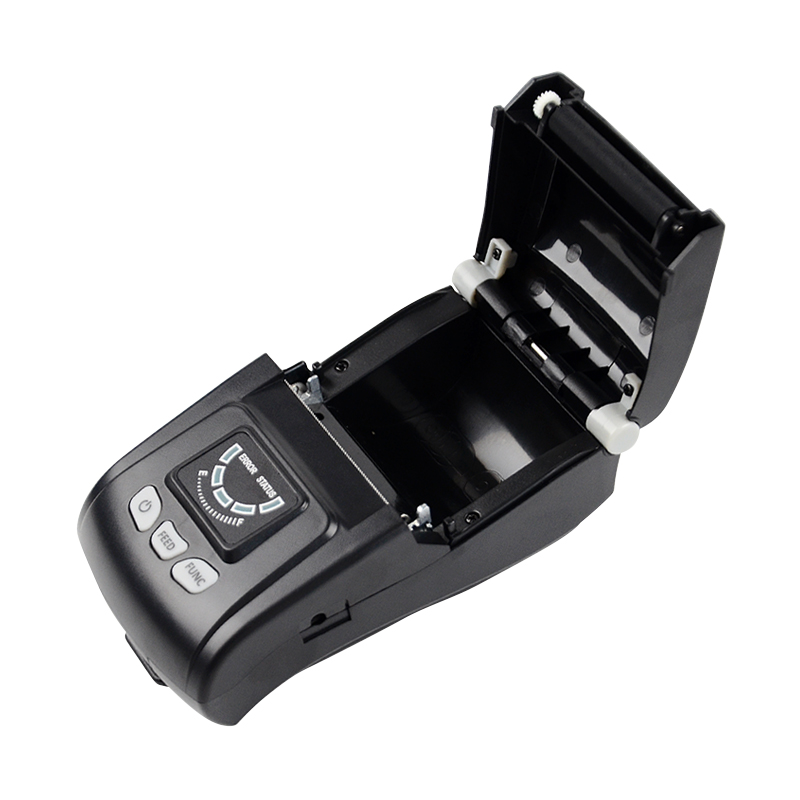

• User friendly, easy paper loading design
• Can install 50mm diameter paper rolls
• 2200mA/7.4Vr Rechargeable Lithium Battery, good quality batteries which can be used for longer time
• Support printing tasks even while charging
• Using low power consumption mechanism in order to extension printing time with best printing performance
• Standby mode could last for max. 7 days (depends on interfaces connection factor)
• USB+Bluetooth(Standard), USB+Wi-Fi(Optional)
• Support BT3.0&BLE4.0 that able to connect with Android and IOS systems
• WIFI is capable working at AP/STA/AP+STA mode,it is very convenient for user to build up network printers
• USB can be set as a virtual serial port mode for easy development and testing
• Support ESC/POS command, download bitmap, NV bitmap, new order reminder, 1D Barcodes, QR Code
• GB18030 Simplified Chinese, BIG5 Traditional Chinese, Japan, Korean, International Fonts and Extended code page
• Provide free DLL, SDK, app Demo for integration and developments
Print method | Direct Thermal |
Print command | ESC/POS |
Resolution | 203DPI |
Print speed | 60mm/s(max) |
Print width | 48mm |
Print head temperature detect | Thermistor |
Print head position detect | Reflective Sensors |
Paper detect | Keep Right |
Sensor position | RAM:48K FLASH:256K+8M |
Memory | USB+Bluetooth, USB+Wi-Fi |
USB Port Spec. | Micro USB |
Graphics | Support different density bitmap printing |
1D Barcode | UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), ITF, CODABAR, CODE39, CODE93, CODE128 |
2D Barcode | QRCODE |
Character set | ANK Fonts: FontA:12x24dot FontB:9x17dot |
Korean, Simplified Chinese, Traditional Chinese: 24x24dot | |
Character enlargement / Rotation | 1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing |
Media type | Continuous paper, front black mark paper |
Media width | 58mm |
Media diameter | 50mm |
Media output method | Top paper output |
Power | Input:DC9V 1A |
Charging Time | Less than 4hrs |
Battery Standby Time | N/A |
Battery Working Time | More than 350 meters |
Battery Capacity | 7.4V/2200mAh |
Working environment | 5~40℃,20~90%RH |
Storage environment | -25~55℃,20~93%RH |
Pressure | 86-106kPa |
Printer weight (without battery) | 222g |
Printer weight (with battery) | 320g |
Printer Dimensions | 145mm×83mm×65mm |
Packing dimension | 195mm×157mm×66mm |
Print head (reliability) | 50km |
Printer certificate | CCC, SRRC, RoHS, UN38.3 |
* The above parameters are subject to change without notice. |
