• Tiny and portable, easy to carry
• Large capacity battery for long services hours extension

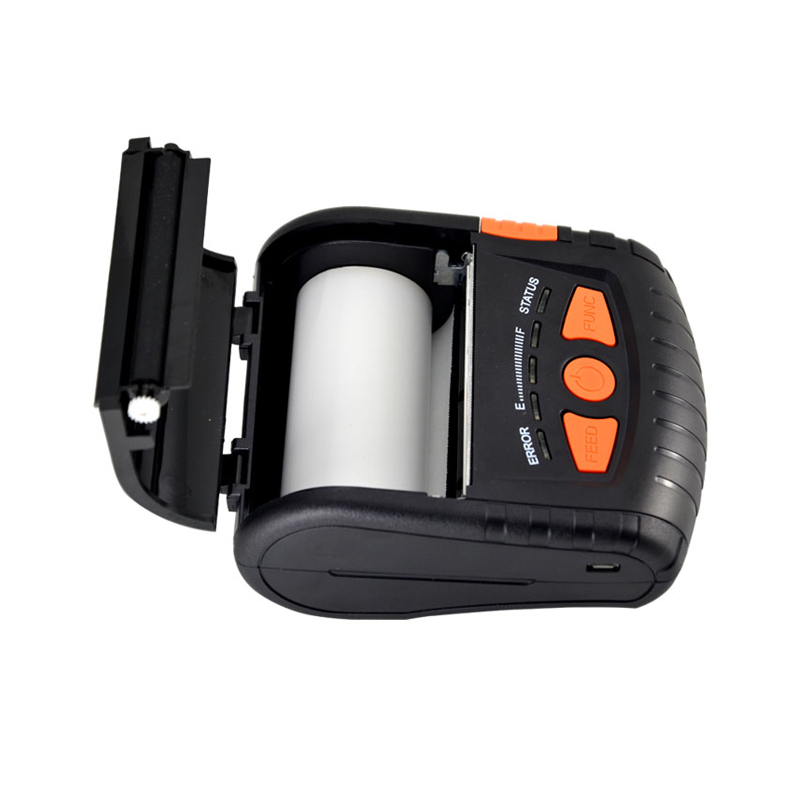

• Streamlined appearance, easy paper load design
• 80mm printing width, maximum printing width is 72mm
• 2200MA/7.4V rechargeable lithium battery, Long standby time up to one week
• Support anto-sleep mode for energy saving and environmental protection
• Multiple interface: USB+Bluetooth, USB+Wi-Fi
• Support BT3.0&BLE4.0 that able to connect with Android and IOS systems, good compatibility
• Support new order remind, user friendly
• Support printing a variety of bitmaps, 1D Barcodes, 2D Barcodes

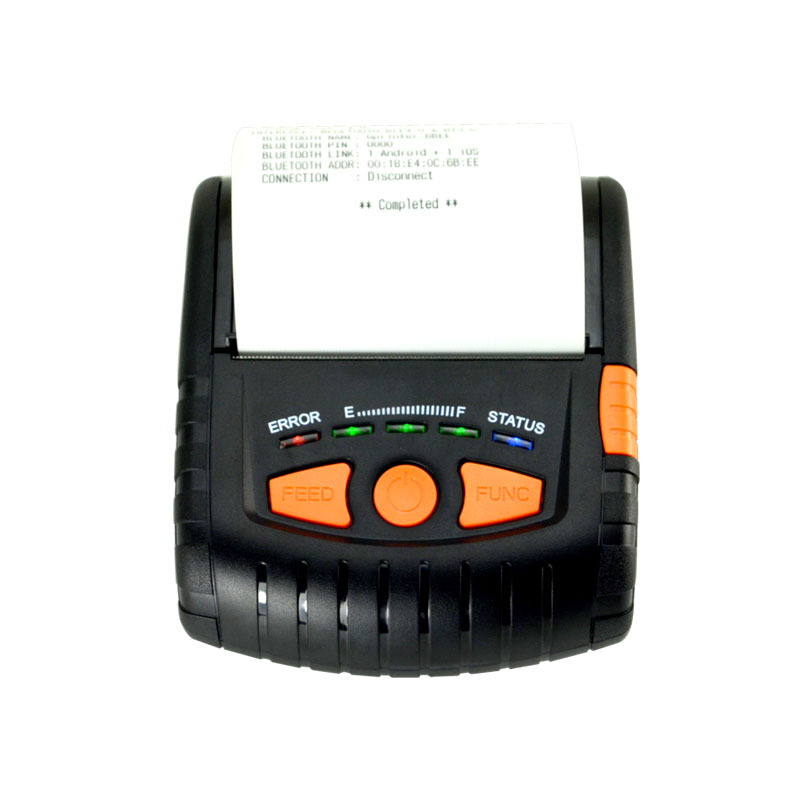

• LED lights can indicate printer error, power, charging and communication connection status
• Provide free DLL, SDK, app Demo for integration and developments
Print method | Direct Thermal |
Print command | ESC/POS |
Resolution | 203DPI |
Print speed | 60mm/s(max) |
Print width | 72mm |
Print head temperature detect | Thermistor |
Print head position detect | N/A |
Paper detect | Reflective Sensors |
Sensor position | Keep Right |
Memory | RAM:48K FLASH:256K+8M |
Display | N/A |
Interfaces | USB+Bluetooth, USB+Wi-Fi |
USB Port Spec. | Micro USB |
Printing Width & Length | N/A |
Graphics | Support different density bitmap printing |
1D Barcode | UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN8), ITF, CODABAR, CODE39, CODE93, CODE128 |
2D Barcode | QRCODE |
Character set | ANK Fonts: Font A:12x24dot FontB:9x17dot |
Korean, Simplified Chinese, | |
Character enlargement / Rotation | 1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing |
Media type | Continuous paper, front black mark paper |
Media width | 80mm |
Media diameter | 50mm |
Media output method | Top paper output |
Power | Input:DC9V 1A |
Charging Time | Less than 4hrs |
Battery Standby Time | N/A |
Battery Working Time | More than 230 meters |
Battery Capacity | 7.4V/2200mAh |
Working environment | 5~40℃,20~90%RH |
Storage environment | -25~55℃,20~93%RH |
Pressure | 86-106kPa |
Printer weight (without battery) | 262g |
Printer weight (with battery) | 360g |
Printer Dimensions | 130mm×106mm×58mm |
Packing dimension | 195mm×157mm×66mm |
Print head (reliability) | 50km |
Printer certificate | CCC, SRRC, RoHS, UN38.3 |
* The above parameters are subject to change without notice. |
