Print mode

Direct thermal

Print command

TSPL

Resolution

203DPI

Print speed

2~5inch/s

Print width

104mm（max）

Print head temperature detect

Thermal sensitive resistance

Print head position detect

Mircoswitch

Black mark position detect

Reflective sensors

Paper detect

Transmissive sensor

Memory

DRAM:8M FLASH:4M

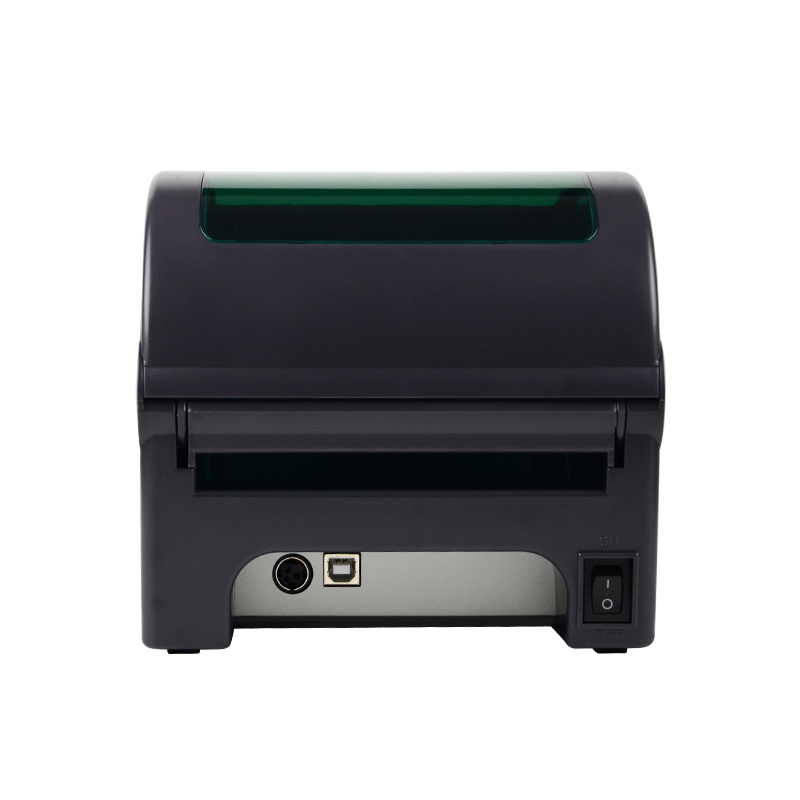

Interface

USB

Graphics

Monochrome PCX, BMP and other graphics files can be downloaded to FLASH/DRAM

Barcode

CODE128, EAN128, ITF, CODE39, CODE93, EAN13，EAN13+2, EAN13+5, EAN8, EAN8+2, EAN8+5, CODABAR，POSTNET, UPC-A, UPC-A+2, UPC-A+5, UPC-E, UPC-E+2，UPC-E+5，CPOST, MSI, MSIC, PLESSEY, ITF14, EAN14, QRCODE

Character set

Common single-byte fonts: FONT 0 to FONT 8

Character enlargement / Rotation

1 ~10 times enlargement in portrait and landscape orientation;  0°, 90°, 180°, 270°degree rotation

Media type

Continuous, die-cut, fan-fold etc.

Media width (with backing paper)

26mm-118mm

Media roll core size

25.4mm

Media diameter

105mm（max）

Paper output method

Tear off

Input

input: DC24V 2.5A

Operation environment

5~40℃, 20~90%RH

Storage environment

-25~55℃, 20%~93%RH

Printer weight

1.24kg

Printer dimension

225×185×155mm

Packing dimension

310×230×205mm

Print head (reliability)

30km

Printer certificate

CE, FCC, CCC, RoHS
