• 80mm direct thermal cloud printing
• Ethernet + Wi-Fi cloud + USB interface, with auto cutter, manual volume adjustment;
• Support MQTT IoT protocol, can provide cloud services (public cloud or private cloud) and OEM customization services for hardwares
• Adopts new mechanism design, equipped with excellent hardware and software technology, supports horizontal, vertical, wall-mounted and other installation methods.
• Support human voice broadcast, voice online upgrade, customized voice available.
• Professional cloud platform support, open source API interface, can easily connect to various mini program and third-party platforms, support the simultaneous use of multi-store and multi-platform applications, and help businesses flows efficiently.
• Powerful network capability enables developers to control printers well without writing complicated network control codes.
• Interconnection, remote monitoring and printing can be carried out through the Internet, so that remote printers are at your fingertips.
• Specializing in the printing of kitchen retail receipts, also suitable for printing receipts for catering, takeaway, milk tea, supermarkets and shopping mall.
Print method | Direct Thermal Line |
Print resolution | 203dot/inch |
Printing Width | 72mm or 80mm |
Dot Density | 576dot/line or 640dot/line |
Print speed | 200mm/s |

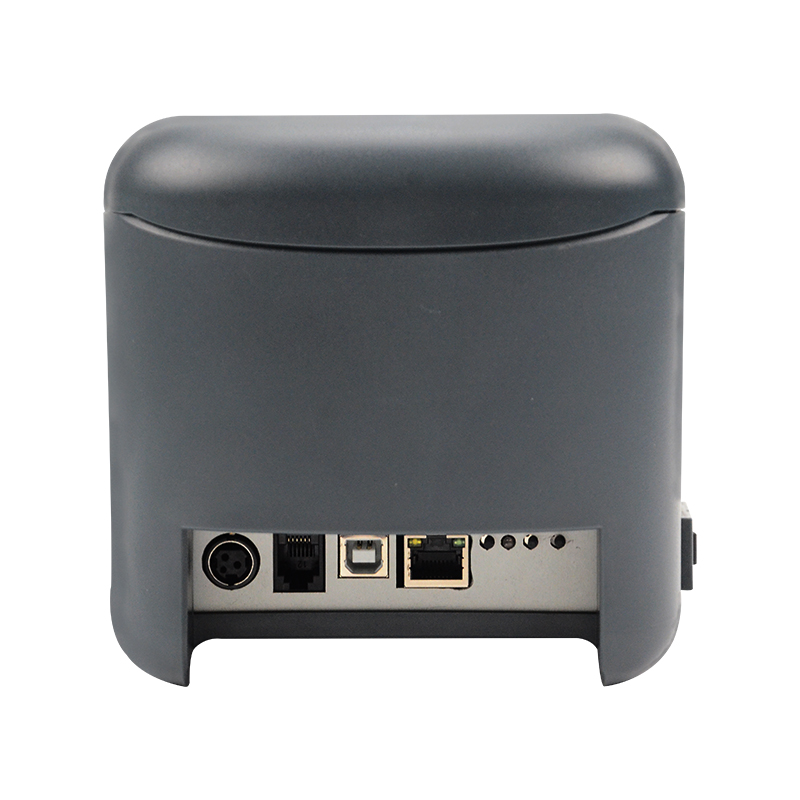

Interface type | Ethernet+Wi-Fi Cloud+USB Audio |
Thermal Paper Spec. | paper width:79.5 ±0.5mm,Paper outer diameter:¢100mm |
Line spacing | 3.75mm(can be adjust by Command) |
Number of columns | Font A-42 line or 48line / Font B-5 line or 64line / Simplified/Traditional Chinese-21line or 24 line |
Character Fonts | Standard obtained GB18030 Chinese Fonts,Korean and Japanese fonts,support vector font download |
Character Size | ANK Fonts,Font A:1.5x3.0mm(12x24dot), |
Simplified/Traditional Chinese:3.0x3.0mm(24x24dot) | |
Extended Character Table | PC437/Katakana/PC850/PC860/PC863/PC865/West Europe/ |
(PT151,1251)/(WPC1257)/(PC864)/(Vietnam)/(Thai) | |
UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/ | |
CODABAR/CODE93/CODE128 | |
Cash drawer output | DC 24V/1A |
Power adaptor | DC 24V/2A |
Power supply | Input:AC110V/220V,50~60Hz,Output:DC 24V/2A |
Printer dimensions | 180mmx140mmx145mm |
Working environment | Temperature: 5~45°C , Humidity: 10~80% |
Storage environment | Temperature: -10~50°C , Humidity: 10~90% (RH) |
Reliability | 150KM for Mechanism, 1.5 Million Cuts |
