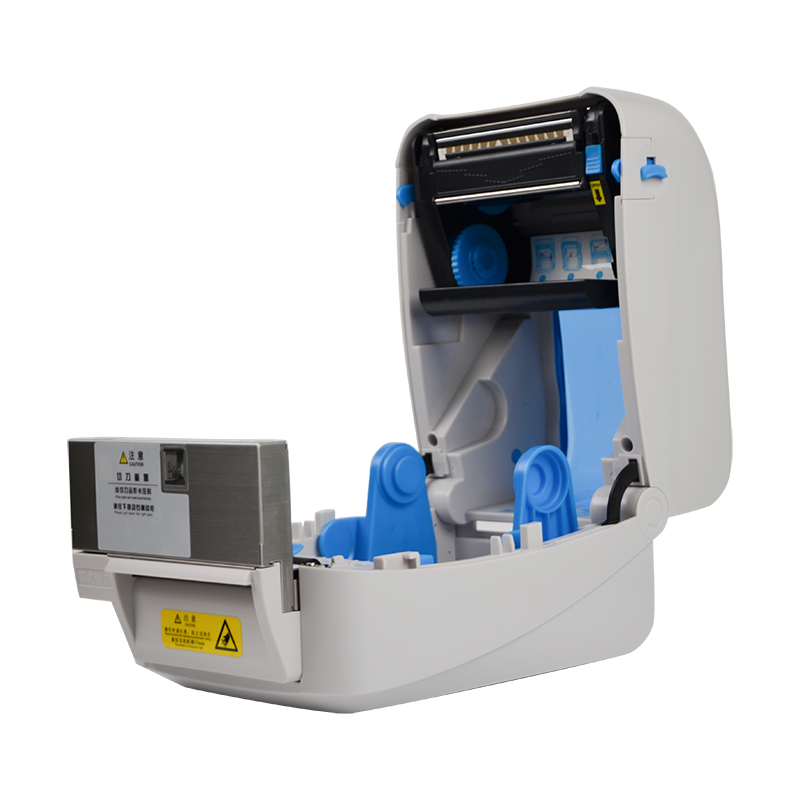

• Come with cutter and peeler, automatic paper cutting and peeling, high work efficiency
• 1824TC/TP serise (203DPI), 1834TC/TP serise (300DPI), 300DPI printing is more precise
• 120mm paper exit chute, 104mm printing width, 127mm paper OD, external paper holder support for various large paper rolls
• Multi-function printing, thermal transfer/direct thermal modes can be switching freely, suitable for various industries, flexible selecting consumables
• Dual sensor design, automatic paper detection, transmissive and reflective sensors, accurate printing, paper-saving and energy-saving
• All-in-one structure design, rugged and durable, multiple interfaces to meet all your printing requirements
• High speed printing, convenient to use
• Dual printing mode (No ribbon required for direct thermal mode , ribbon required for thermal transfer mode)
• Gainscha and Seagull is a partnership. Seagull’s BarTender software is trusted by many companies from manufacturing, chemical, healthcare, food and beverage, aerospace, pharmaceutical, supply chain, logistics and other industries, it can help you to design and print label. BarTender is marketing in more than 150 countries or regions and is widely praised by users.
Model | GP-1824TC | GP-1825TC |
Applications | Supermarket, catering, clothing, logistics, tea, baking chain stores, etc. | |
Print mode | Direct thermal / Thermal transfer | |
Print command | TSPL | |
Resolution | 203DPI | |
Print speed | 2~6inch/s | |
Print width | 104mm | |
Overheat protection sensor | Yes | |
Paper detect sensor | Yes | |
Black mark detect sensor | Yes | |
Head open detect sensor | Yes | |
Media end error sensor | Yes | |
Memory | DRAM:8MB FLASH:4MB | |
Interface | Serial+USB+Parallel (standard) | USB+Parallel+Serial+Ethernet (standard) |
USB+Bluetooth, USB+Wi-Fi (optional) | ||
Graphics | Monochrome PCX, BMP and other graphics files can be downloaded to FLASH/DRAM | |
1D Barcode | CODE128、EAN128、ITF、CODE39、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14、QRCODE | |
Character set | Common single-byte fonts: FONT 0 to FONT 8 | |
Character enlargement / | 1 ~10 times enlargement in portrait and landscape orientation; 0°, 90°, 180°, 270°degree rotation | |
Media type | Continuous, die-cut, fan-fold, black mark | |
Media width (include backing paper) | Max.120mm (4.72"), Min.20mm (0.78") | |
Media roll OD | 127mm（5"）OD | |
Media thickness | Max.0.254mm ((10mil). Min.0.06mm (2.36mil) | |
Media roll core size | 1inch（25.4mm） | |
Ribbon OD | Max.67mm | |
Ribbon length | 300m | |
Ribbon core size | 1inch（25.4mm） | |
Ribbon width | Max.110mm，Min.30mm | |
Ribbon rolling up method | Outward rolling | |
Media handling | Tear off | |
Cut off, peel off (optional) | ||
Media output method | Front paper output | |
Power supply | input: DC24V 2.5A | |
Operation condition | 5~40℃, 20~90%RH | |
Storage condition | -25~55℃, 20%~93%RH | |
Printer weight | 2.50kg | |
Printer dimension | 278x210x180mm | |
Packing dimension | 370×260×235mm | |
Print head (reliability) | 30km | |
Printer certificate | CCC, CE, FCC, RoHS, SRRC | CCC, CE, FCC, RoHS |
