Print command

TSPL

Resolution

203DPI

Print speed

2~6inch/s(152mm/s)

Print width

104mm

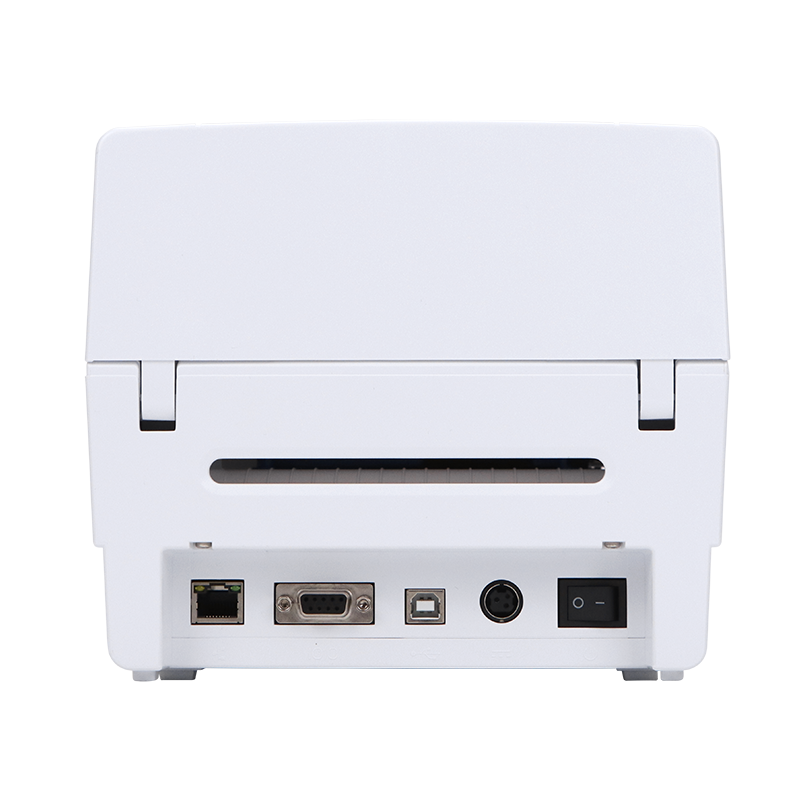

Interface

Standard：USB
optional：USB+Bluetooth/WIFI
optional：USB+Ethernet+Serial

Memory

DRAM:8MB FLASH:4MB

Overheat protection

Thermistor

Button

Pause button, Feed button

Media detection

Through-beam Sensor and Reflective Sensor

USB interface

USB 2.0 Type-B

USB VID PID

VID:0471 PID:0055

Overheat protection

Support

Media detection

Support

Black mark detection

Support

Cover open detection

Support

Media end detection

Support

Graphics

Monochrome PCX, BMP and other image files
can be downloaded to FLASH/DRAM

1D/2D Barcodes

CODE128、EAN128、ITF、CODE39、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14

Character Sets

Common single-byte fonts：FONT 0 to FONT 8

Character Enlargement/Rotation

"1 ~10 times enlargement in portrait and landscape orientation;
0°, 90°, 180°, 270°degree rotation printing"

Media type

Continuous, die-cut,black mark、 hanging tag, washing label, streamer, wristband

Media width

Max120mm，Min20mm

Media roll size

127mm

Media thickness

Max0.254mm，Min0.06mm

Media core diameter

25.4mm/38.1mm

Ribbon outside diameter

Max67mm

Ribbon length

110m/300m

Ribbon core diameter

12.7mm/25.4mm

Ribbon width

30-110mm

Ribbon rolling up method

Outward rolling

Media handling

tear-off

Media output method

Front paper output

Operation condition

5~40℃，20%~90%non-condensing

Storage condition

-25~55℃，20%~93%non-condensing

Power supply

DC24V 2.5A

Printer N.W

2.23kg

Printer dimension

282×200×180mm

Packing dimension

370×260×235mm

Box dimension (cm)

545*385*495

Packing G.W.(kg)

14.6

quantity/box

4

Print head (reliability)

50KM

Printer certificate

CCC、RoHS、SRRC
