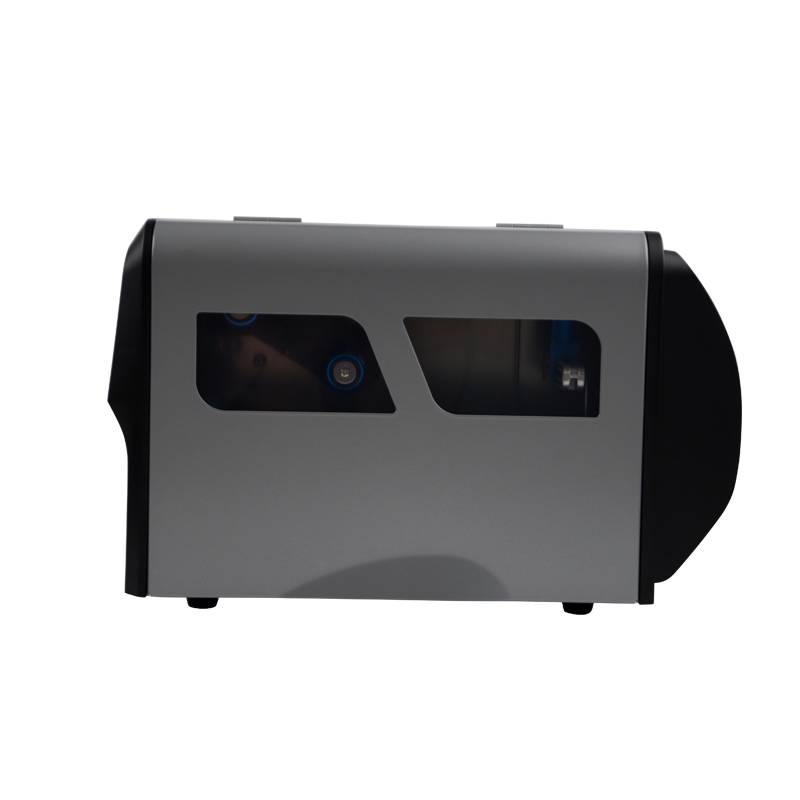

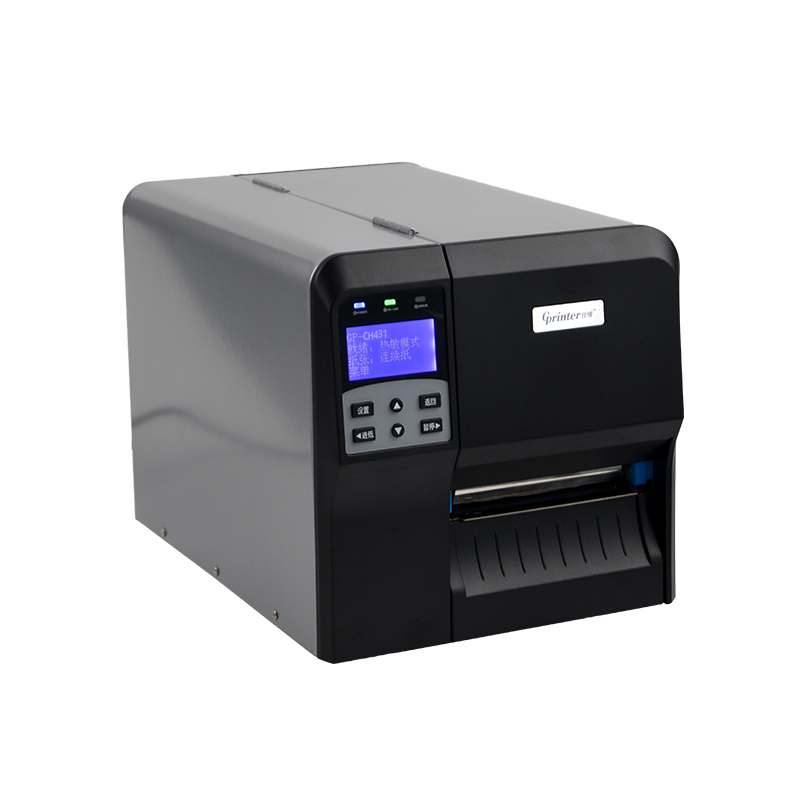

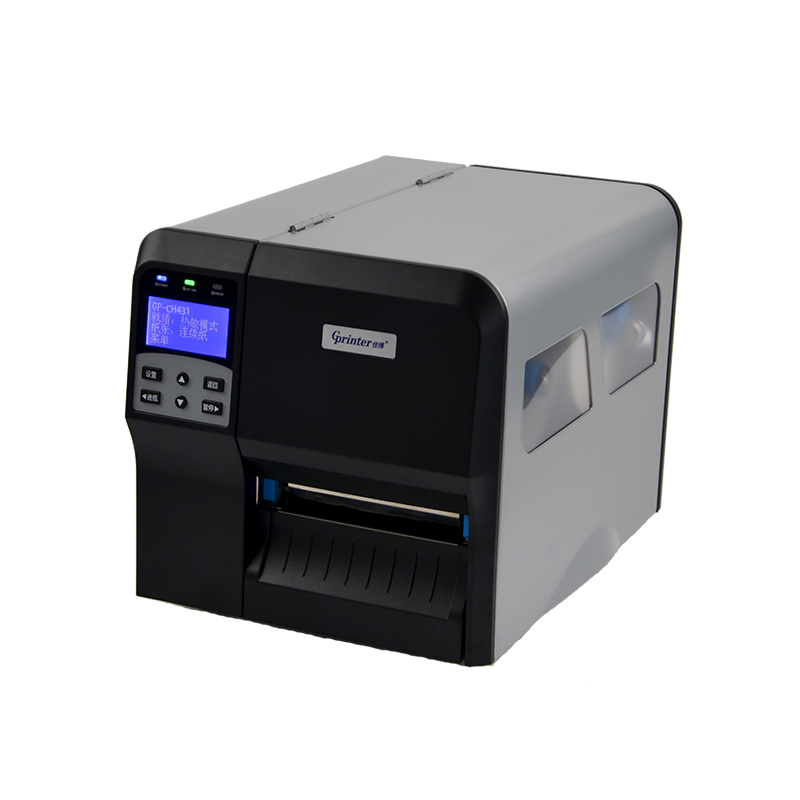

GP-CH421

4" Industrial barcode printer



  • perfomance
  • paramenters


• 203dpi high resolution, widely used for industry such as clothing tags, washing water labels, and fixed assets
• Support 7X24h continuous printing to meet the large batch, heavy duty and long time working
• Durable all-metal frame construction design meets demanding industrial requirements
• The Gainscha's second generation HEATORY™ thermal technology (intelligent thermal control system, high accuracy thermal balance control technique)
• Gainscha unique Gmulation™ intelligent command set coding technology
• LCD control panel for better interactivity
• 5-classes of adjustable mechanism; Ribbon anti-wrinkle equipment
pressure
• Automatic paper detection function, no waste of first paper

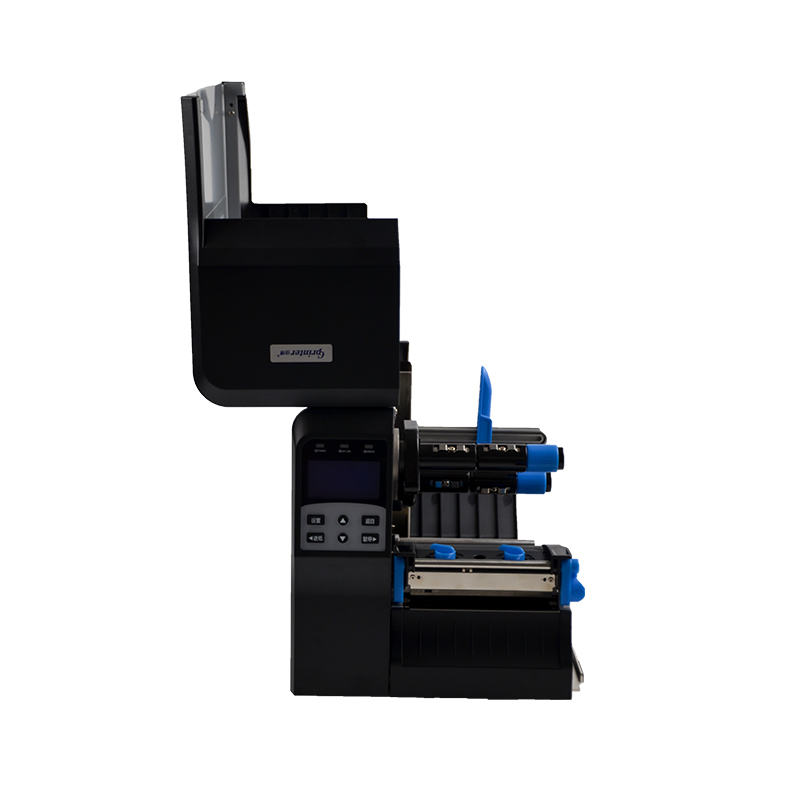

• Quickly replace the print head and platten roller
• 120mm paper exit chute, 4"label width, 8"label roll O.D, 81.3mm ribbon roll O.D
• Optional cutter and peeler, more convenient and quickly
• Heavy loading cu er with 1 million times of long service life
• Dual printing modes (thermal mode does not require ribbon, thermal transfer mode require ribbon)


Print mode

Direct thermal / Thermal transfer

Print command

ZPL

Resolution

203DPI

Print speed

2inch/s~5inch/s

Print width

104mm

Print head temperature detect

Thermal sensitive resistance

Print head position detect

Mircoswitch

Black mark position detect

Reflective sensors

Paper detect

Transmissive sensor

Memory

DRAM:16M    FLASH:8M

Interface

Serial+USB+Ethernet

Graphics

GRF, PNG format (other formats need to be converted to GRF format)

1D Barcode
2D Barcode

Aztec, Code 11, INTERLEAVED 2 OF 5, Code 39, Code 49, Planet, PDF 417, EAN-8, UPC-E, Code 93, Code 128, EAN-13, Micro PDF 417, Industrial 2 of 5, Standard 2 of 5, ANSI Codabar, LOGMARS, MSI, Aztec, Plessey, QR, UPC/EAN, UPC-A, Data Matrix

Built-in font library

Support download the replaceable vector fonts

Media type

Continuous, die-cut, fan-fold, black mark

Media width (include backing paper)

Max.120mm (4.72"), Min.20mm (0.78")

Media roll core size

25.4mm(Min)

Media roll OD

Φ203mm(8")

Media thickness

Max.0.254mm ((10mil).  Min.0.06mm (2.36mil)

Ribbon OD

Max.81.3mm

Ribbon length

450m

Ribbon core size

1inch(25.4mm)

Ribbon width

Max.110mm,Min.30mm

Ribbon rolling up method

Outward rolling

Media handling

Tear off (Standard)

Cut off, peel off (optional)

Media output method

Front paper output

Power supply

input: AC 200V-240V 1.5A 50/60 Hz

Operation condition

5~40℃, 20~90%RH

Storage condition

-25~55℃, 20%~93%RH

Printer weight

9.65kg

Printer dimension

425×255×265mm

Packing dimension

525×375×365mm

Print head (reliability)

30km

Printer certificate

CCC, CE, FCC, RoHS
