Item

Properties

Label mode

Receipt mode

Print

Print mode

TSPL/TSC

ESC

Resolution

Standard: 203dpi;  Optional: 300dpi

Print width

80mm (max)

72mm (max)

Print speed

Normal: 250mm/s,  Max: 300mm/s

Memory

DRAM: 16M    FLASH: 16M

Print head temperature detect

Thermal sensitive resistance

Print head position detect

Mircoswitch

Paper detect

Photoelectric sensor

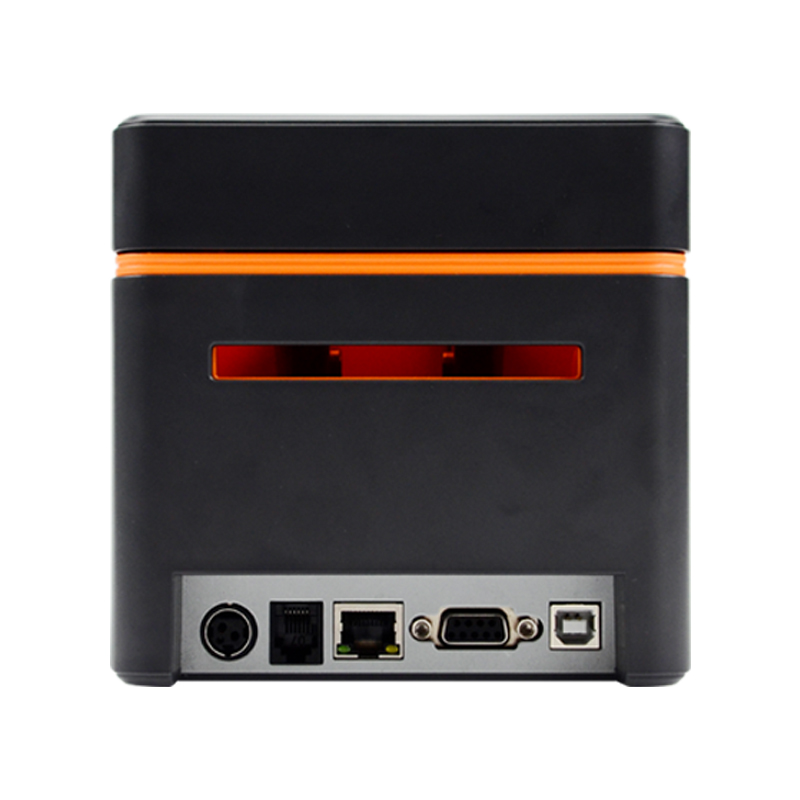

Interface

Standard: Ethernet+USB+Serial
Optional: Ethernet+USB+Wi-Fi, Ethernet+USB+Bluetooth

Barcode

Barcode type

1D Barcode: CODE128/EAN128/ITF/CODE39/

EAN13/EAN13+2/EAN13+5/EAN8/EAN8+2/

EAN8+5/CODABAR/POSTNET/UPC-A/

UPC-A+2/UPC-A+5/UPC-E/UPCE+2/

UPC-E+5/CPOST/MSI/MSIC
2D Barcode: QRCODE/PDF417*

1D Barcode:
UPC-A/UPC-E/JAN13(EAN13)/

JAN8(EAN8)/CODE39/
CODABAR/ITF/CODE93/CODE128
2D Barcode: QRCODE/PDF417*

Character enlargement / Rotation

1 ~10 times enlargement in portrait and landscape orientation;  0°, 90°, 180°, 270°degree rotation

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Graphics

Monochrome PCX, BMP graphics files

Support different density bitmap printing

Character set

Standard: Simplified Chinese GB18030, UTF-8*
Optional: Traditional Chinese BlG5, Korean, Japanese

Media

Media type

Thermal roll paper, self-adhesive paper, etc.

Thermal paper roll

Media width

83±0.5mm (with backing paper)

83±0.5mm

Media diameter

83mm (max)

Paper output method

Front paper output, Tear off /Cut out  (Standard: partial-cut, Optional: full-cut)

Power supply

Input

DC24V 2.5A

Environment requirements

Working environment

5~40℃, 20~90%RH

Storage environment

-25~55℃, 20%~93%RH

Physical properties

Printer dimension

 181mm×136mm×134mm (L×W×H)

Printer weight

1.25kg

Printer certificate

CE, FCC, CCC, RoHS, SRRC

Note: The * symbol in the table means the QR code PDF 417 and the text UTF-8 will be subsequent to realise.
