Print method

Direct thermal

Print command

Compatible with ESC/POS commands

Resolution

203DPI

Print speed

180mm/s

Print width

72mm

Print head temperature detect

Thermal sensitive resistance

Print head position detect

Microswitch

Paper detect

Transmissive sensor

Memory

FLASH: 60K

Interface

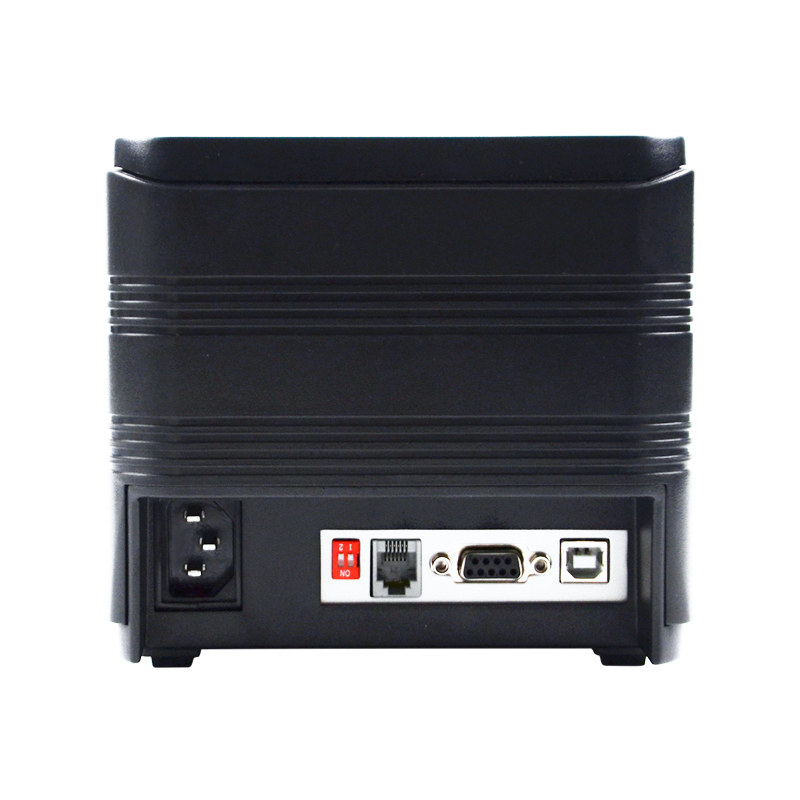

Standard: USB+Serial+Cash drawer  Ethernet+Cash drawer

Graphics

Support different density bitmap printing

Bar code

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ITF/CODABAR/CODE39/CODE93/CODE128/QRCODE

Character set

GB18030 large font library

Character enlargement/rotation

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Media type

Thermal roll paper

Media width

79.5士0.5mm

Media thickness

0.06-0.08mm

Media roll outer diameter

Max. 83mm

Media output method

Top paper output, partial-cut

Power supply

Input: DC24V 1.5A

Working environment

0~40℃, 30%~90% non-condensing

Storage environment

-20~55℃, 20%~93% non-condensing

Printer weight

1.211kg

Printer dimension

190×150×133mm

Packing dimension

260×210×230mm

Print head (reliability)

150km

Printer certificate

CCC, CE, FCC, RoHS

* The above parameters are subject to change without notice.
