Print consumables

58mm thermal paper in rolls

Print method

Direct Thermal

Print command

ESC/POS Command

Print resolution

203DPI

Print speed

90mm/s

Print width

48mm

Print head temperature detect

Thermistor

Paper detect

photoelectric sensor

RAM

1MB

FLASH

8MB

NV FLASH

60KB

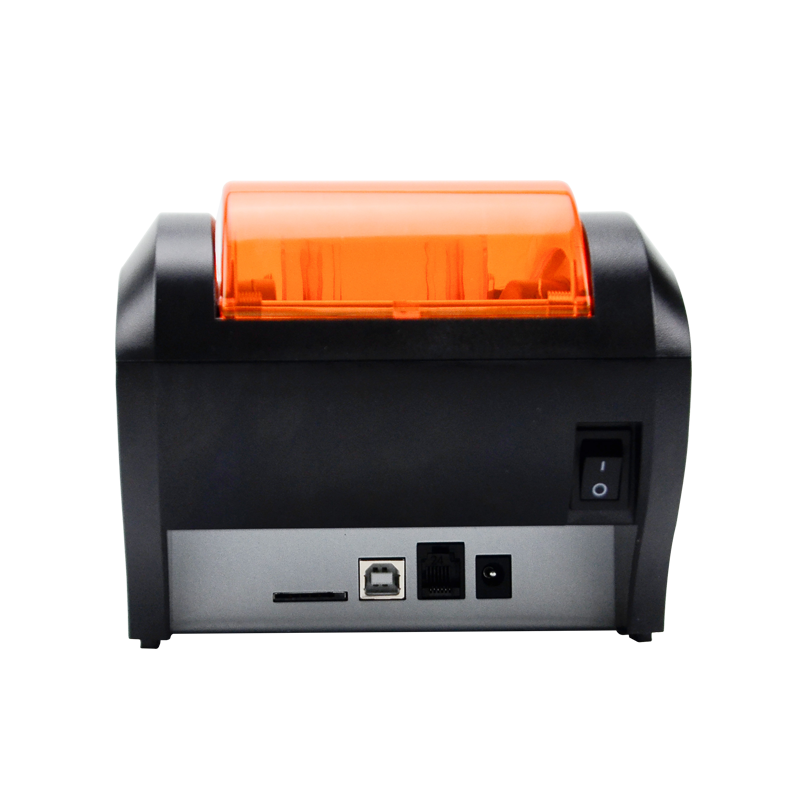

Printer Interfaces

USB+Wi-Fi

USB+4G

USB+Wi-Fi+4G（Optional）

Graphics

Support different density bitmap printing, ASCII Fonts

1D Code / 2D Code

UPCA/UPCE/JAN13(EAN13)/JAN8(EAN8)/CODE39/ITF/

CODABAR/CODE93/CODE128/QRCODE

1D Barcode / 2D Barcode

(GB18030 Simplified Chinese+Big5 Traditional Chinese+Korean)/Japanese,ANK Fonts

Character Enlargement / Rotation

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Media type

Thermal Paper Roll

Media width (with back paper)

57.5±0.5mm

Media diameter

80mm

Media thickness

0.06~0.08mm

Media output method

Top paper output

Cutter

Partial Cut

Cutter Reliability

1 million Cut

Power input

DC 8.5V ⎓ 3A

Cash drawer output

Output：DC 12V⎓1A

Working environment

0~40℃（32~104℉），25~85%RH

Storage environment

-20~55℃（-4~131℉），10~90%RH

Printer weight

1kg

Printer dimensions

201*142.5*120mm

Packing dimension

235*155*199mm

Print head (reliability)

50km

Printer certificate

CCC
