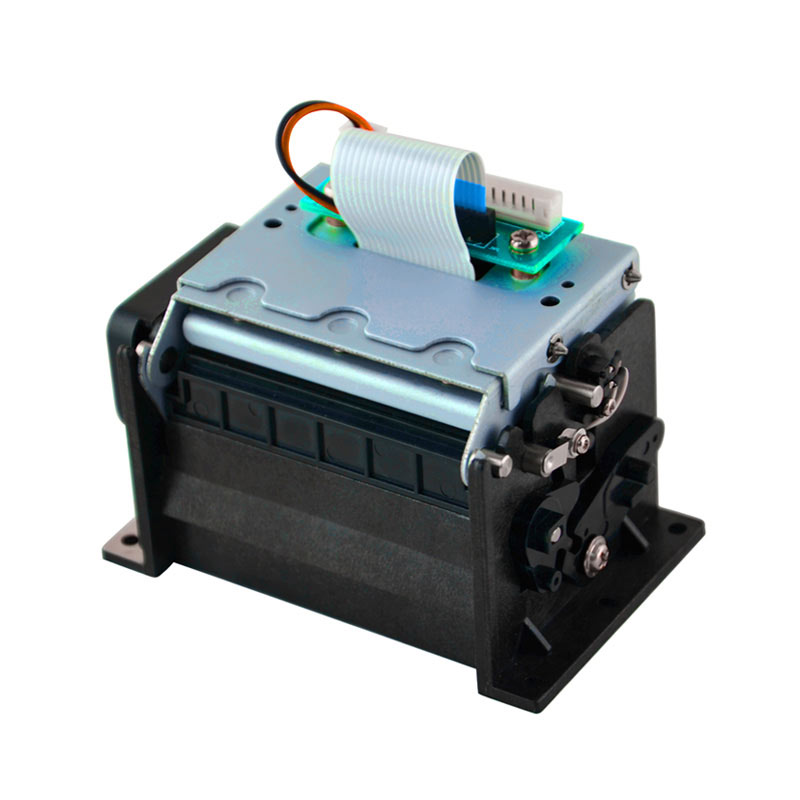

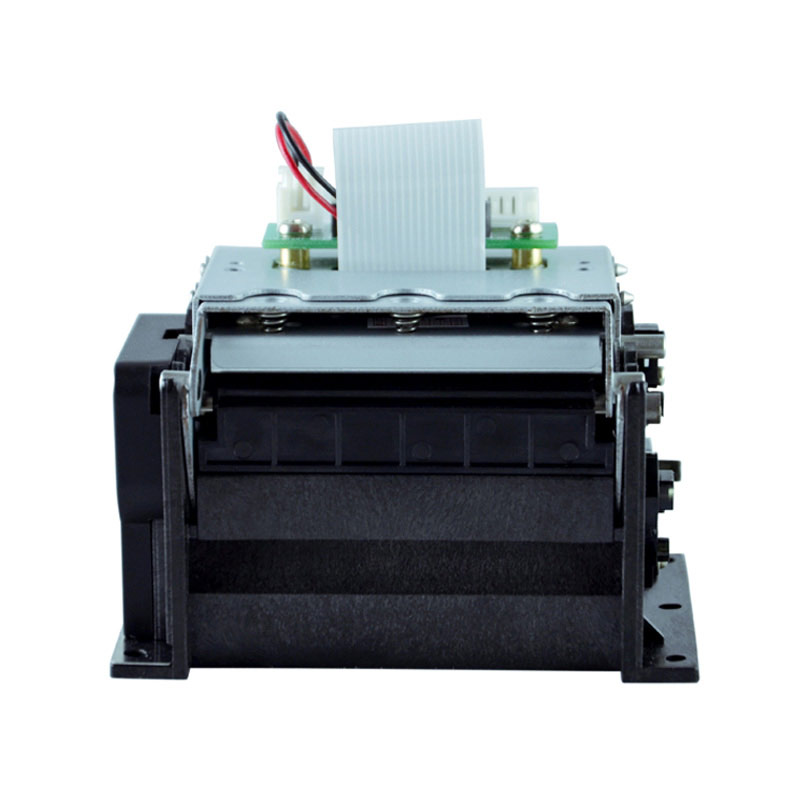

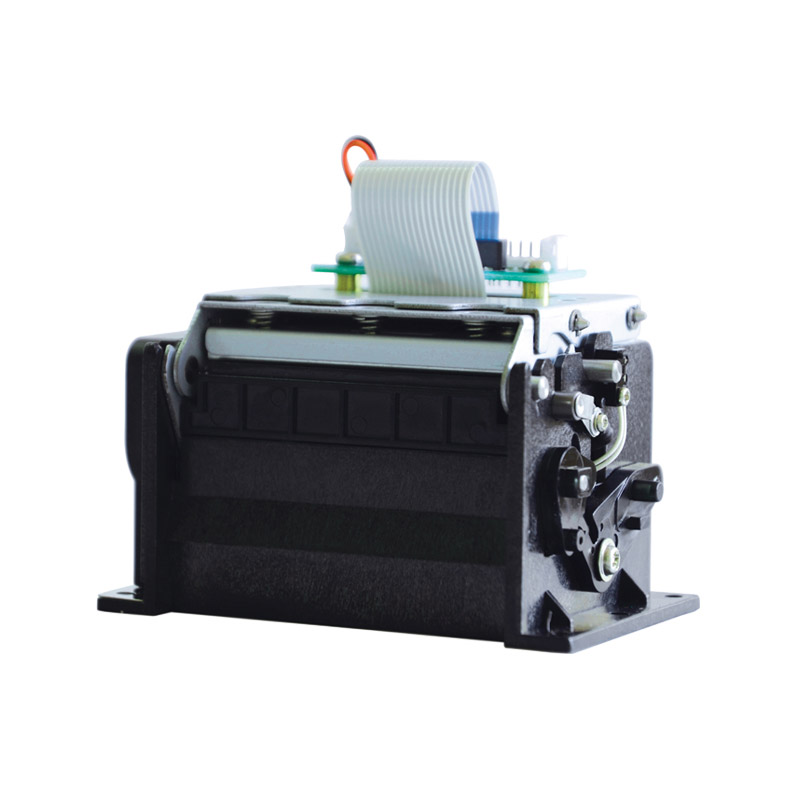

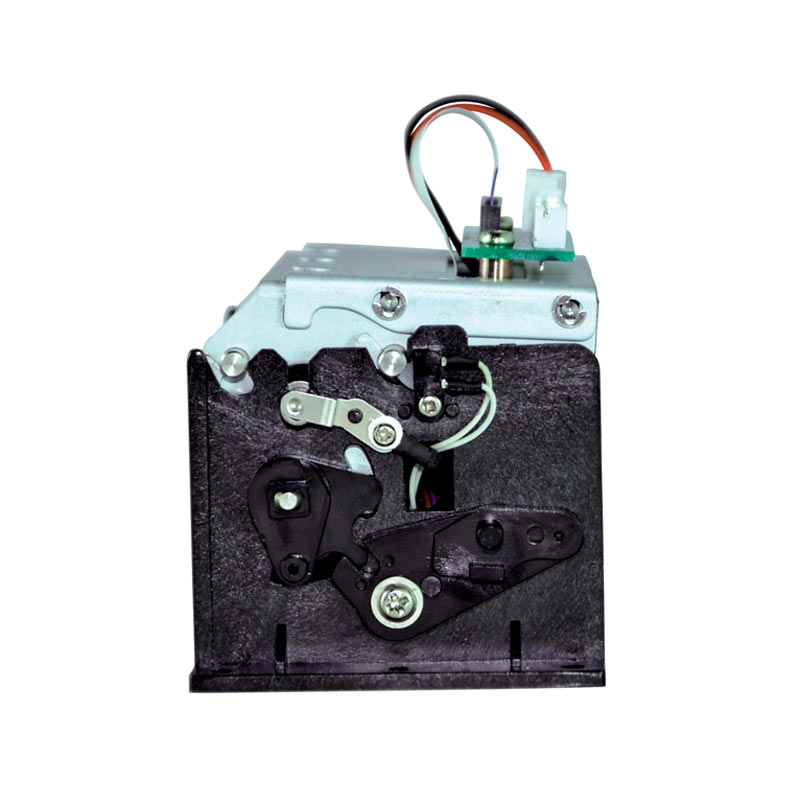

SID-2120TIII

58mm Barcode Printer Mechanism

  • perfomance
  • paramenters


Product introduction:
58mm thermal  barcode label printer mechanism, printing speed is 100mm/sec, widely used in postal, automatic ticketing, logistics barcode, hotel management system, medical industry, coffee shop, bakery label printing and so on.

Product Features:
■ 25-60mm Paper Width
■ Printing Speed: 120mm/sec
■ Thermal barcode label printer: resolution 203DPI, clear printing effect, label paper width 25-60mm that could be adjustable
■ High-speed printing: printing speed can reach 100mm/sec
■ Printing reliabilities: The printing life of the mechanism is up to 150 kilometers, and the pulse excitation reaches 100 million times
■ Low noise: compact structure design, low printing noise
■ Paper roll drag force: large motor paper feeding structure, can drag large paper rolls with a diameter of 100mm without losing step
■ Product compiled ROHS standard


Printing Parameters

Printing Method

direct thermal

dot per line

448dot

Resolution

203DPI

max. printing speed

100mm/sec

effective printing width

56mm

paper width

25-60mm

feeding distance

0.125mm

paper path

straight feeds

paper type

Thermal roll paper, label paper, etc.

paper output method

manual peeling or tearing off

Detections

Print Head Sensor (Temp.)

detected by thermistor

roller position

Detected by mechanical switch

paper end detections

Detected by photoelectric sensor

Operating Voltage

Logic voltage

3.3V

Thermal printing head printing voltage

12V

Peak current

printer head

8.06A（13.2V/192dot）

motor

0.50A /Phase

Reliabilities

Pulse excitation

100 million or more

TPH (Reliabilities)

150km or more

Operation Condition (RH)

Temperature: 5 ~ 45℃， Humidity:10 ~ 80%

Storage Condition (RH)

Temperature: -10 ~ 50℃ ，Humidity:10 ~ 90%

Dimensions

100.8×59.5×73.2mm

Weight

Approxi 237g

* The above parameters are subject to change without notice.
