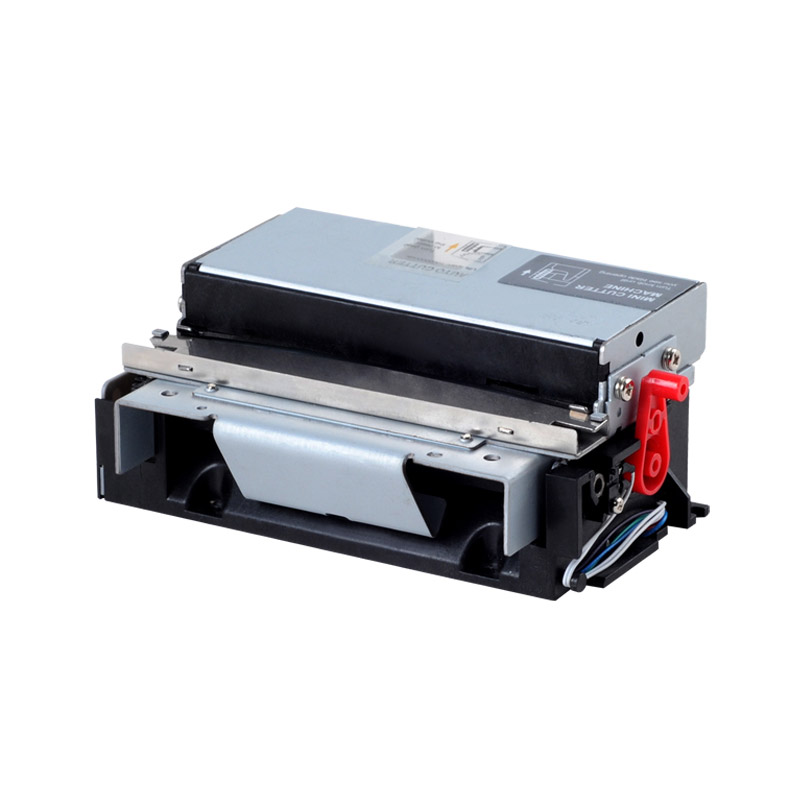

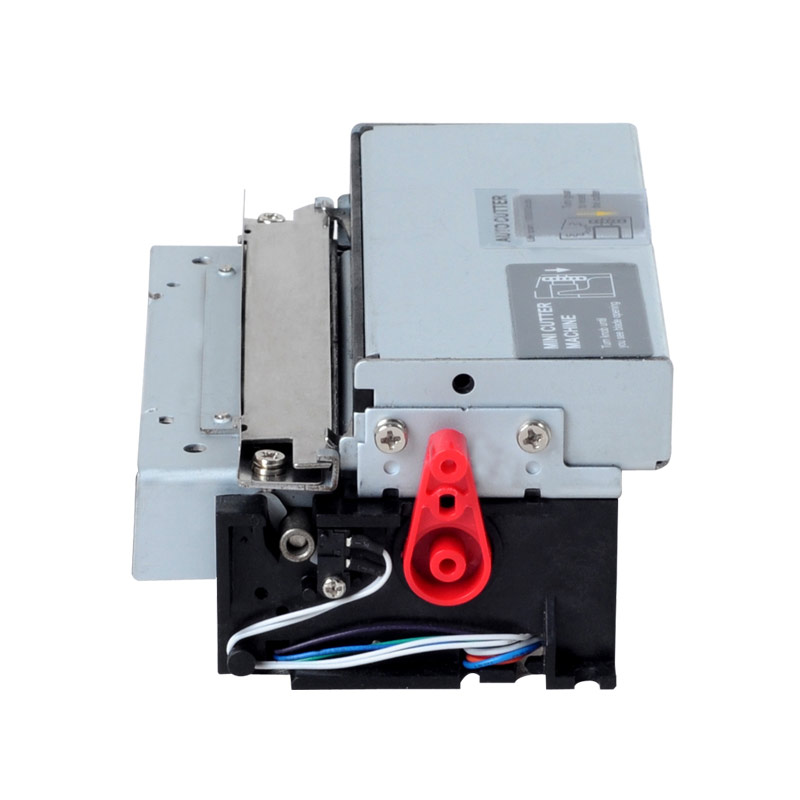

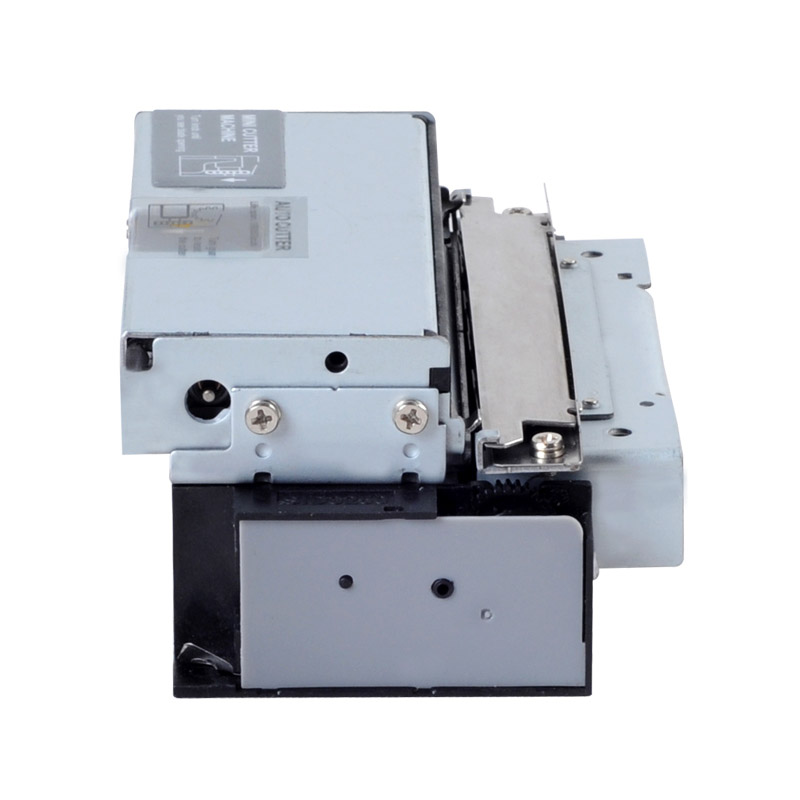

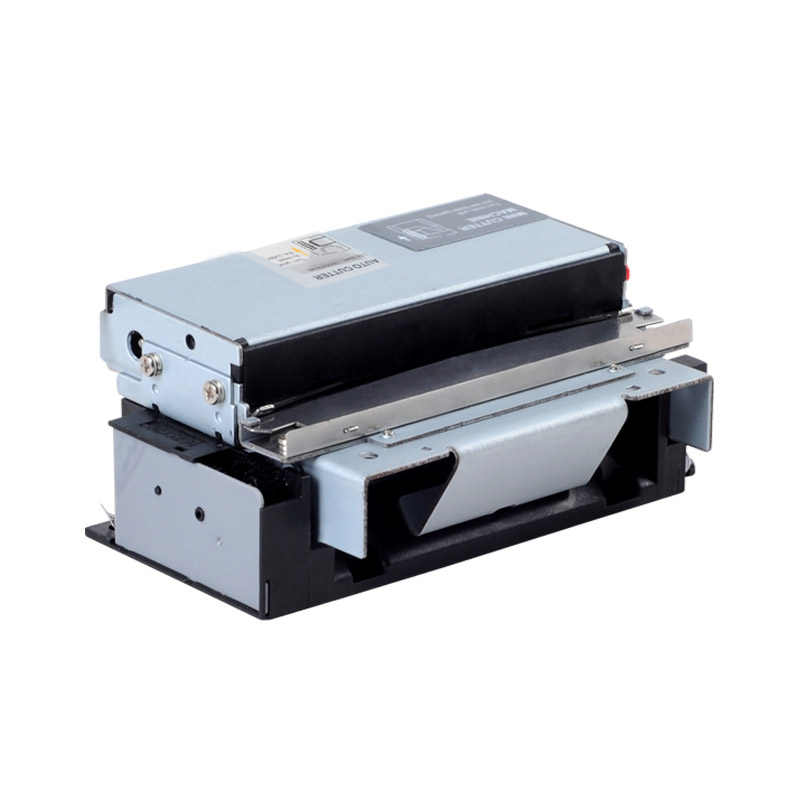

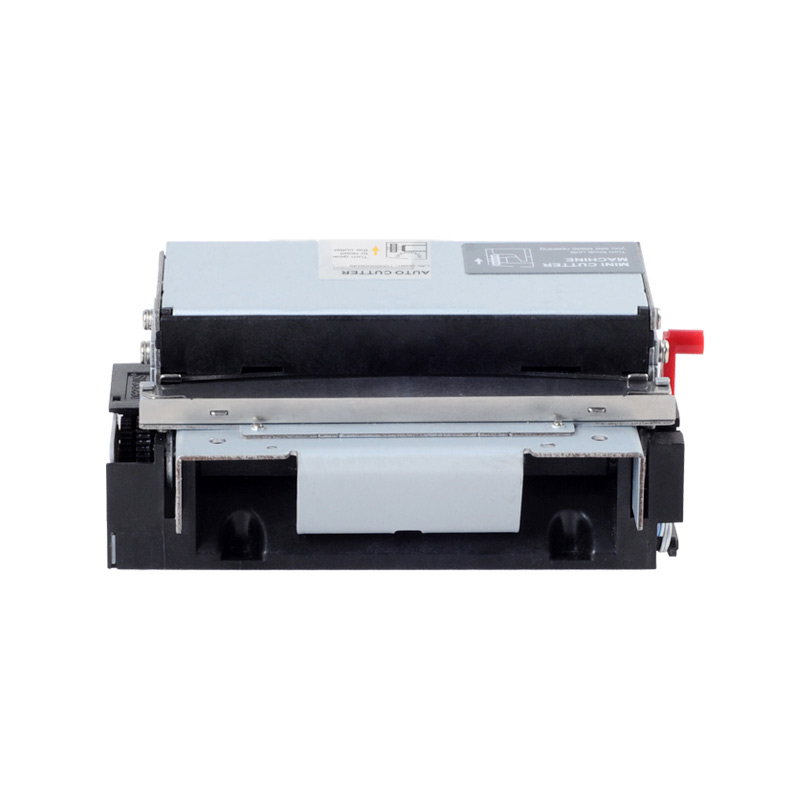

SID-3250C
80mm Thermal Printer Mechanism
  • perfomance
  • paramenters


Product introduction:
High-speed 80mm thermal printer mechanism, printing speed 300mm/sec, with auto cutter (1.5 million cuts stable performance), widely used in POS terminals, automatic ticket vending machines, receipt label printing, self-service bank terminals, instruments, Medical equipment, game machines, lottery machines, queuing machines, ATM machines and other fields.

Product Features:
■ 80mm Paper Width
■ High-speed printing: The printing speed of the mechanism can reach 300 mm/sec
■ Easy paper loading structure design: with automatic cover opening structure, the printing roller can be easily removed, and paper can be loaded easily
■ Printing reliabilities: The printing mechanism is up to 150 kilometers,  the pulse excitation is up to 100 million times
■ Cutter reliabilities:  1.5 million cuts
■ Low noise: compact structure design, low printing noise
■ Paper roll drag force: large motor paper feeding structure, can drag large paper rolls with a diameter of 100mm without losing gear step
■ Product compiled ROHS standard


Printing Parameters

printing Method

direct thermal

dot per line

640dot

Resolution

203DPI

max. printing speed

300mm/sec

effective printing width

80mm

paper width

80mm

feeding distance

0.125mm

paper path

bending feeds

Detections

Print Head Sensor (Temp.)

detected by thermistor

roller position

Detected by mechanical switch

paper end detections

Detected by photoelectric sensor

Cutter reset

Detected by mechanical switch

Operating Voltage

Logic voltage

5V

Thermal printing head printing voltage

24V

Peak current

printer head

5.01A（26.4V/128dot）

motor

0.4A

cutter

1.20A

Auto-Cutter

method

Sliding type

paper thickness

0.054 ~ 0.120mm

cutting method

full cut or partial cut (leave the center point)

Working period

0.4s/cut

Cutting length

10mm

cutter frequency

60cuts/min

Reliabilities

Pulse excitation

100 million or more

TPH (Reliabilities)

150km or more

cutter

1.5 million cuts

Operation Condition (RH)

Temperature: 5 ~ 45℃， Humidity:10 ~ 80%

Storage Condition (RH)

Temperature: -10 ~ 50℃ ，Humidity:10 ~ 90%

Dimensions

110.1×73.1×45.8mm

Weight

Approxi 379g

* The above parameters are subject to change without notice.
