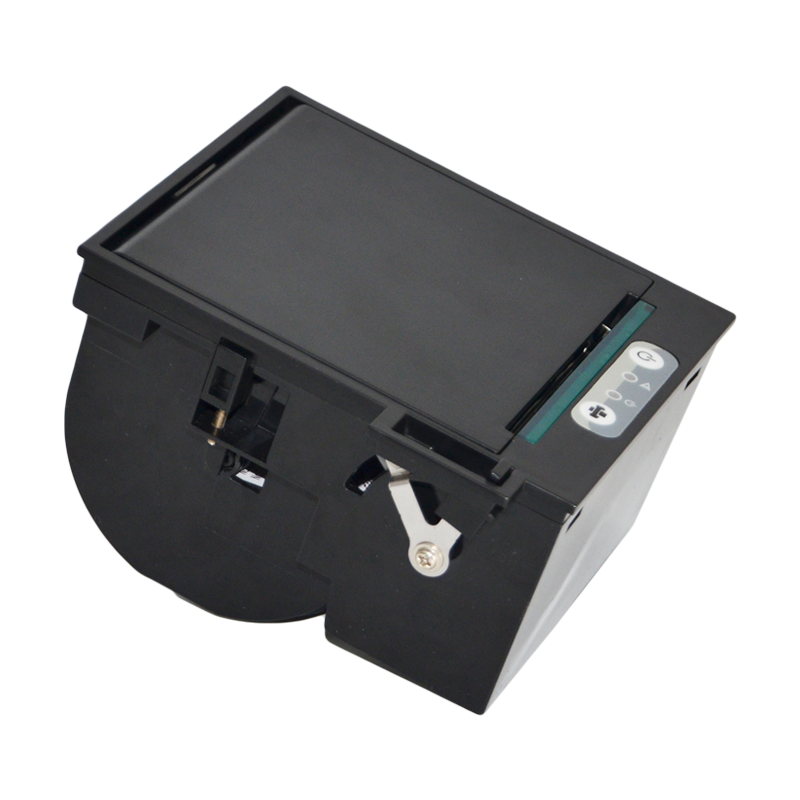

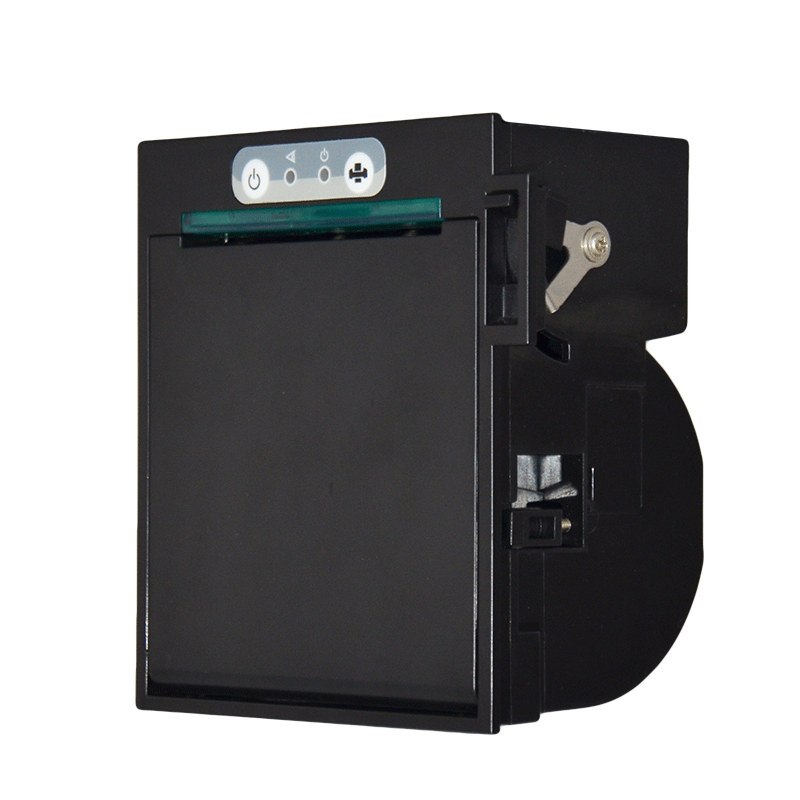

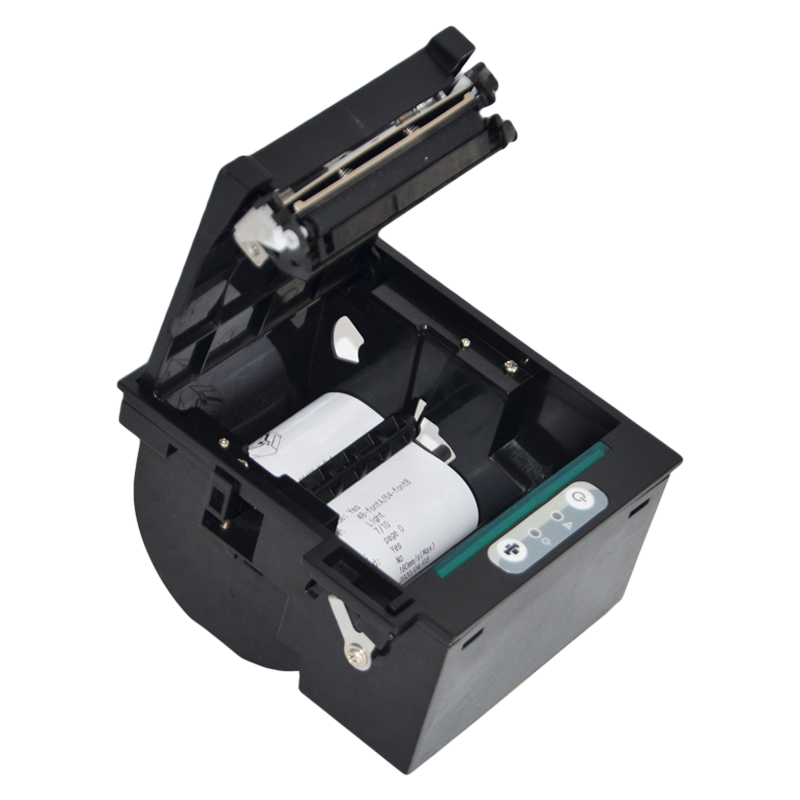

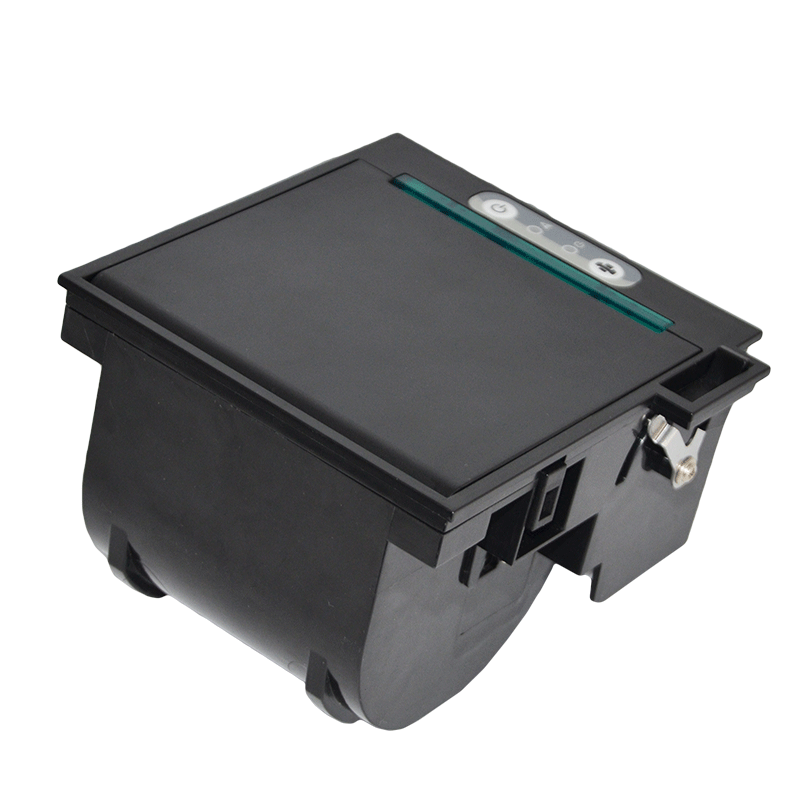

ET-310

80mm Embedded Kiosk Printer

  • perfomance
  • paramenters


• flexible installation,adapt to various POS equipment
• Support 60K Bytes NV Logo download and print, which is convenient for users to store and print the Logo trademark;
• Support up to 26 international language character printing;
• Real-time monitoring of printing status
• Printing Speed: 180mm/s ( ET-310)
• Provide serial port (232 level, optional TTL), network port (ET-220/310) and USB expandable interface
• There are 51 ESC/POS control commands. Characters can be magnified, bolded, underlined, rotated by 90 degrees, inverted, black and white reversed, etc.
• Driving high-speed printing for Graphics and hard fonts;
• Support win9x, win2K, WinXP, Win2003, WinVista x32 and x64 system driver
• Built-in full GB2312 simplified Chinese characters library, optional GB18030 simplified Chinese characters library


Print method

Direct Thermal

Print command

ESC/POS

Resolution

203DPI

Print speed

180mm/s

Print width

72mm

Print head temperature detect

Thermistor

Print head position detect

Micro Switch

Memory

FLASH:60K

Interfaces

USB+Serial+Parallel+Cash Drawer

Graphics

Support different density bitmap printing

1D Barcode
2D Barcode

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ITF/
CODABAR/CODE39/CODE93/CODE128

Character set

ANK Fonts:

Font A：12×24 dot

Font B：9×17 dot

Simplified/Traditional  Chinese: 24×24 dot

Character enlargement / Rotation

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Media type

Thermal Roll Paper

Media width
（included back paper)

80±0.5mm

Paper thickness
(label + back paper)

0.06-0.08mm

Media diameter

Max. 82mm

Media output method

Top paper output

Power

Input：DC12V 2.5A

Working environment

0~40℃，30%~90% RH

Storage environment

-20~55℃，20%~93% RH

Printer weight

0.36kg

Printer dimensions

125.7mm×132.3mm×86mm

Print head (reliability)

50km
