Home -> PRODUCTS -> Embedded Kiosk Printer
ET-220

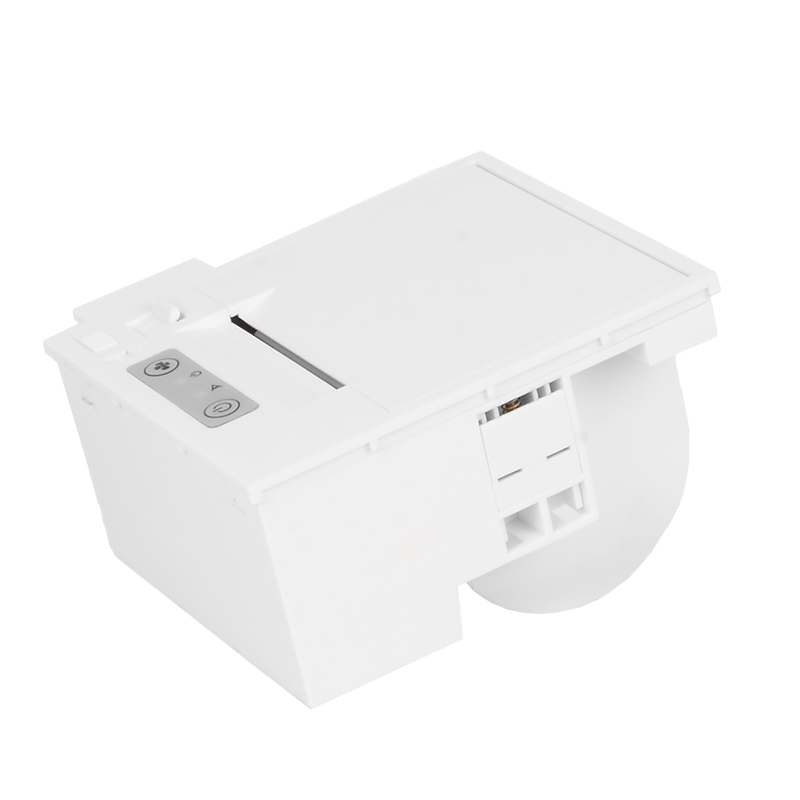

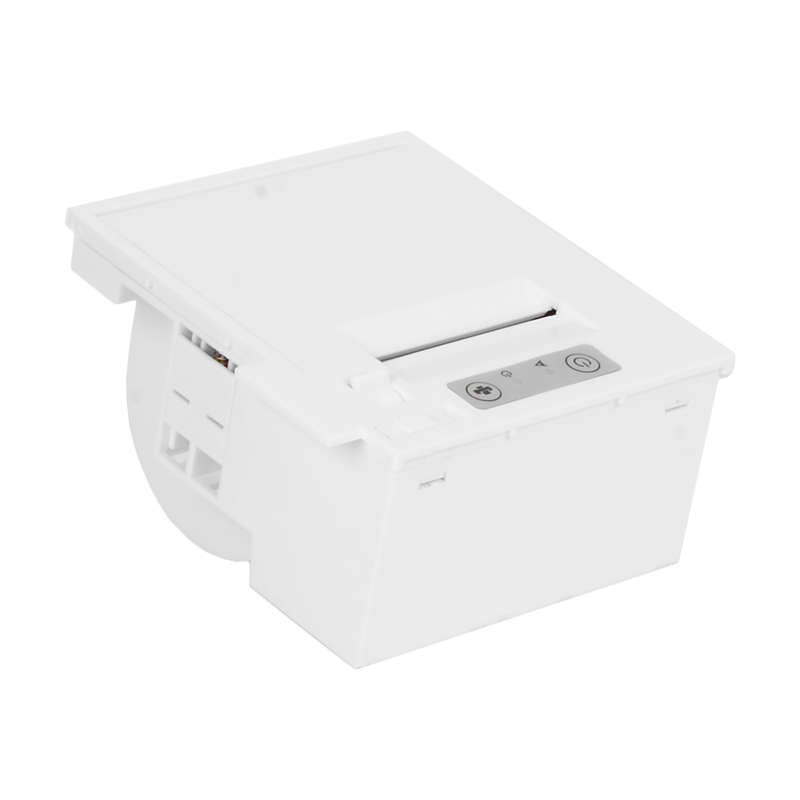

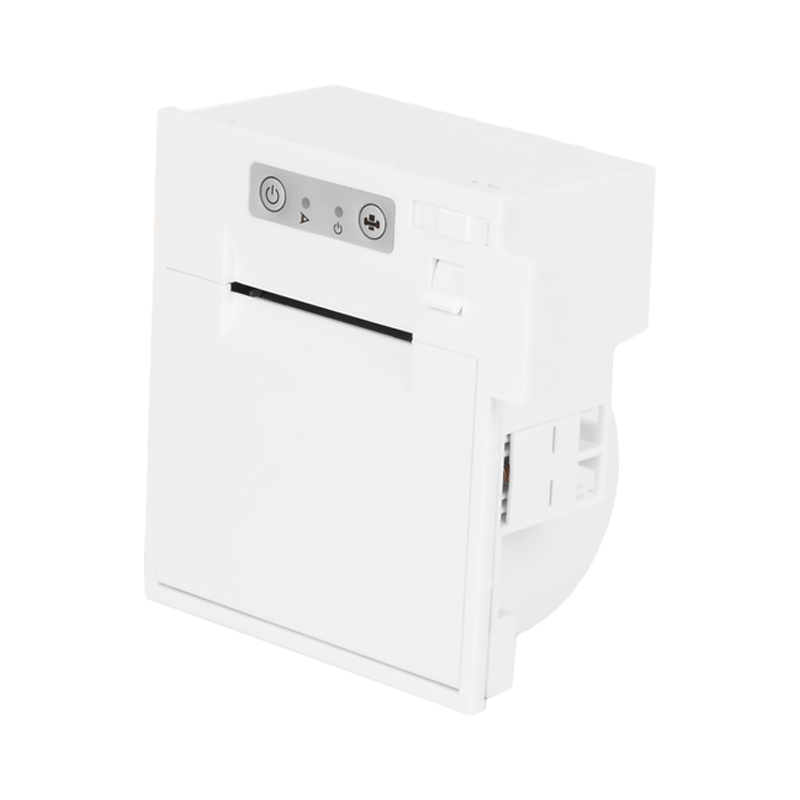

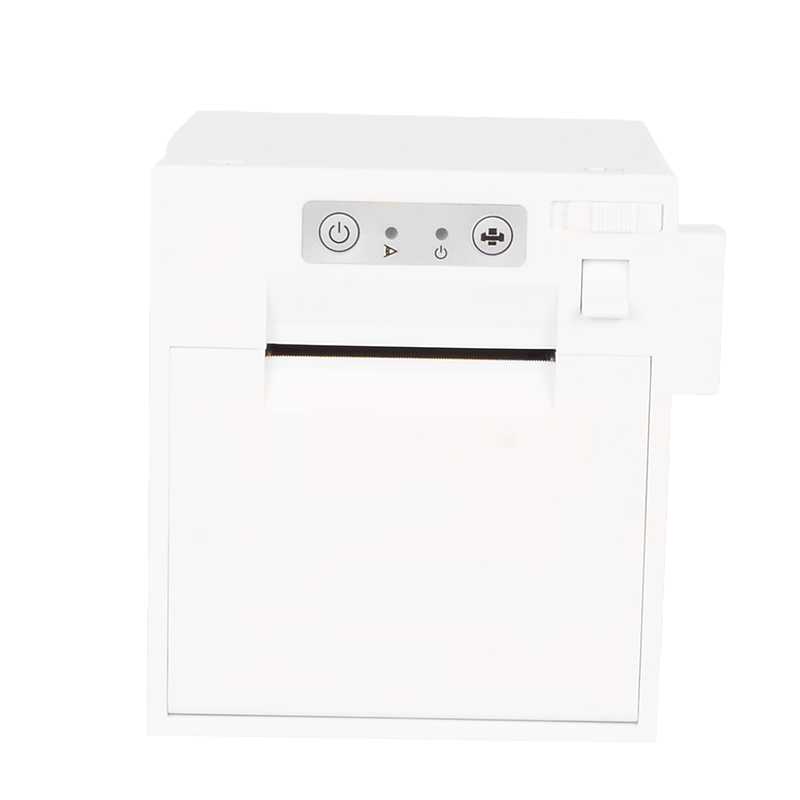

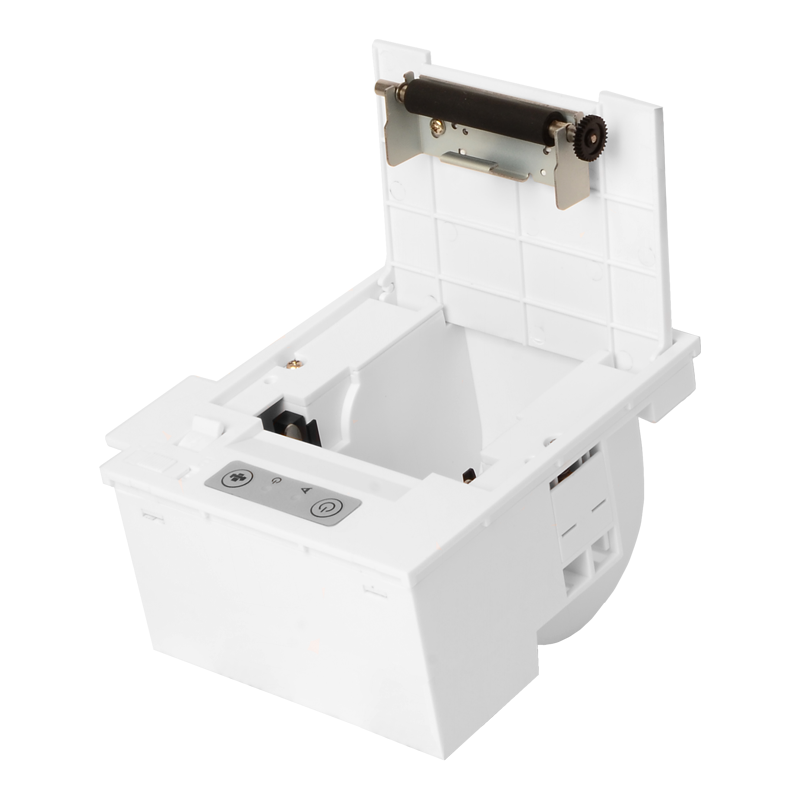

58mm Embedded Kiosk Printer
  • perfomance
  • paramenters


• Available for customization and embedd usage, suitable for various scenarios or flexible application
• Provide serial port, ethernet port and USB expandable interface to meet the use in various scenarios
• Support multiple operating system drivers
• Support 60K Bytes NV Logo download and print, which is convenient for users to store and print the Logo trademark;
• Support up to 26 international language character printing;
• Printing status monitoring, the host can keep abreast of the working status of the device in time;
• Provide serial port (232 level), ethernet port and USB expandable interface;
• With 51 ESC/POS control commands;
• Driving high-speed printing for Graphics and hard fonts;
• Support win9x 、win2K、WinXP、Win2003、WinVista x32 and x64 system driver


Print method

Direct Thermal

Print command

ESC/POS

Resolution

203DPI

Print speed

90mm/s

Print width

48mm

Print head temperature detect

Thermistor

Print head position detect

Micro Switch

Memory

FLASH:60K

Interfaces

USB+Serial+Cash Drawer

Graphics

Support different density bitmap printing

1D Barcode
2D Barcode

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ITF/
CODABAR/CODE39/CODE93/CODE128

Character set

ANK Fonts:

Font A：12×24 dot

Font B：9×17 dot

Simplified/Traditional  Chinese: 24×24 dot

Character enlargement / Rotation

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Media type

Thermal Roll Paper

Media width
（included back paper)

57.5±0.5mm

Paper thickness
(label + back paper)

0.06-0.08mm

Media diameter

Max. 68mm

Media output method

Top paper output

Power

DC 24V/2.5A

Working environment

0~40℃，30%~90% RH

Storage environment

-20~55℃，20%~93% RH

Printer weight

0.36kg

Printer dimensions

132mm×125.5mm×89.5mm

Packing dimension

132mm×135mm×140mm

Print head (reliability)

50km
