GP-D300I
80mm Thermal Receipt Printer
  • perfomance
  • paramenters


• High-speed printing: supports up to 300MM/S printing speed;
• Printing direction: multiple printing methods, support Horizontal/Vertical/Wall-Mounted Placement
• Consumables compatibility: supports thermal paper roll, thermal eco-friendly paper roll and thermal black mark paper roll;
• NV Flash: supports printing NV Logo with the size no less than 512KB;
• Reminder for receipt not taken away to avoid orders missing
Audible and visual alarm loud volume reminder
• Supports Chinese character mode/international mode;
• Auto-reprint efficiently when the paper runs out.


Print methodDirect thermal
Print commandCompatible with ESC/POS, Star commands
Resolution203DPI
Print speed300mm/s
Print width72mm
Print head temperature detectThermal sensitive resistance
Print head position detectMicroswitch
Paper detectTransmissive sensor
MemoryFLASH: 256K

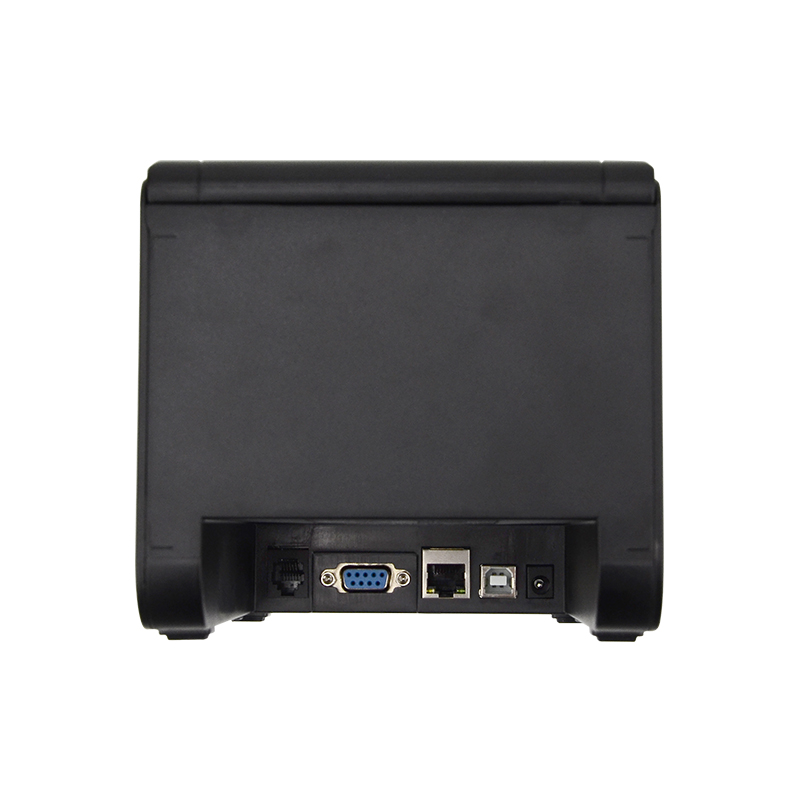

InterfaceStandard: Serial+USB+Ethernet+Cash drawer
Optional:
USB+Bluetooth +Cash drawer
USB+WiFi +Cash drawer
USB+Bluetooth+WiFi+Cash drawer
GraphicsSupport different density bitmap printing
Barcode TypeUPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / ITF / CODABAR / CODE39 / CODE93 / CODE128 / QRCODE / PDF417 / Data Matrix
Character setStandard: GB18030 Simplified Chinese
Optional: GB18030, Traditional Chinese BIG5, Japanese font, Korean KSC5601(One or more Character set supported)
Character enlargement/rotation1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing
Media typeThermal roll paper (include environmental paper), Blackmark paper roll
Media width79.5士0.5mm
Media roll outer diameterMax. 82mm
Media thickness0.06-0.08mm
Media handlePartial-cut
Media output methodTop paper output
Sensor locationMiddle
Wall mountingSupport
Power inputDC 24V 2.5A
Cash drawer outputDC 24V 1A
Working environment0~45℃, 20%~90% non-condensing
Storage Environment-20~55℃, 20%~93% non-condensing
Printer weight1kg
Printer dimension 140mm×178mm×130mm
Packing dimension 260mm×160mm×151mm
Print head (reliability)150km
Cutter (reliability)1.5 million times
Printer certificateCCC, CE, FCC, RoHS
