Print method

Direct thermal

Print command

Compatible with ESC/POS, Star commands

Resolution

203DPI

Print speed

300mm/s

Print width

72mm

Print head temperature detect

Thermal sensitive resistance

Print head position detect

Microswitch

Paper detect

Transmissive sensor

Memory

FLASH: 256K

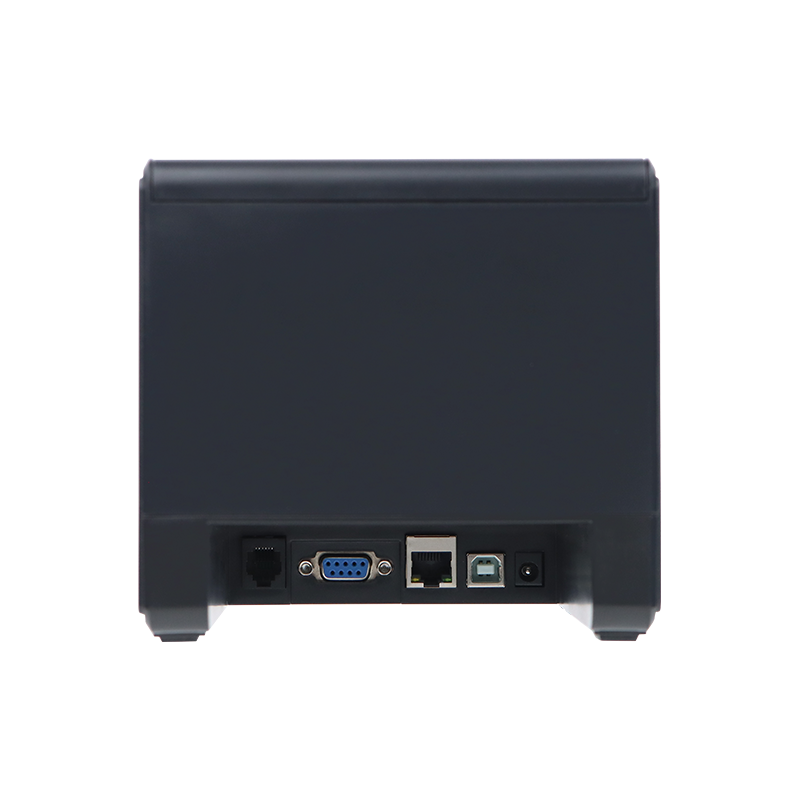

Interface

Standard: Serial+USB+Ethernet+Cash drawer
Optional:
USB+Bluetooth +Cash drawer
USB+WiFi +Cash drawer
USB+Bluetooth+WiFi+Cash drawer

Graphics

Support different density bitmap printing

Barcode Type

UPC-A / UPC-E / JAN13(EAN13) / JAN8(EAN8) / ITF / CODABAR / CODE39 / CODE93 / CODE128 / QRCODE / PDF417 / Data Matrix

Character set

Standard: GB18030 Simplified Chinese
Optional: GB18030, Traditional Chinese BIG5, Japanese font, Korean KSC5601(One or more Character set supported)

Character enlargement/rotation

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Media type

Thermal roll paper (include environmental paper), Blackmark paper roll

Media width

79.5士0.5mm

Media roll outer diameter

Max. 82mm

Media thickness

0.06-0.08mm

Media handle

Partial-cut

Media output method

Top paper output

Sensor location

Middle

Wall mounting

Support

Power input

DC 24V 2.5A

Cash drawer output

DC 24V 1A

Working environment

0~45℃, 20%~90% non-condensing

Storage Environment

-20~55℃, 20%~93% non-condensing

Printer weight

1.05kg

Printer dimension

177mm×144mm×132.5mm

Packing dimension

260mm×159mm×151mm

Print head (reliability)

150km

Cutter (reliability)

1.5 million times

Printer certificate

CCC、RoHS

* The above parameters are subject to change without notice.
