Print method

Direct thermal

Print command

ESC/POS

Resolution

203DPI

Print speed

200mm/s

Print width

72mm

Print head temperature detect

Thermal sensitive resistance

Print head position detect

Microswitch

Paper detect

Transmissive sensor

Memory

FLASH: 256K

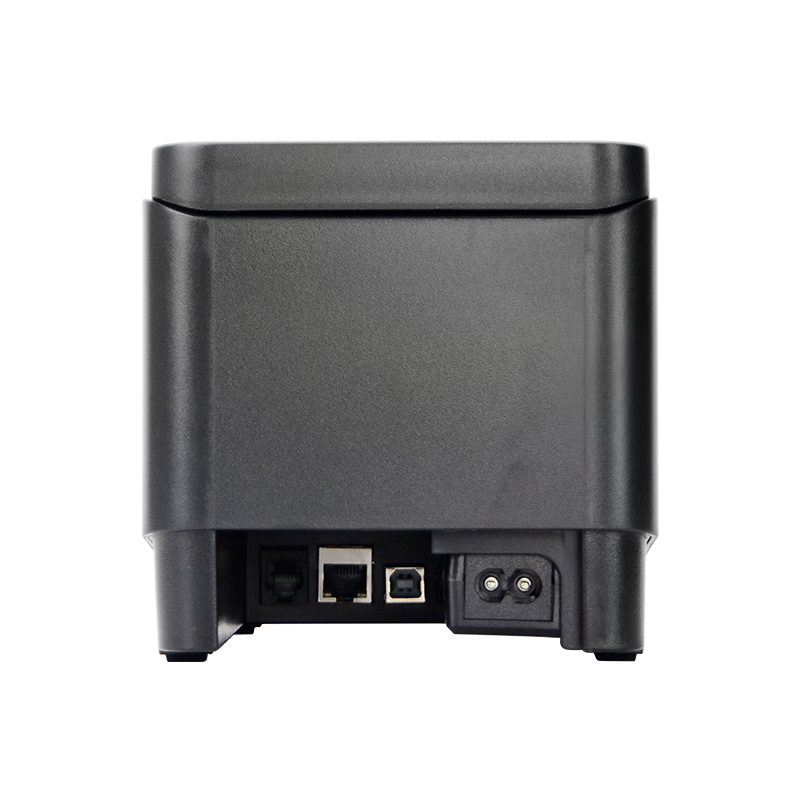

Interface

Standard：

USB+Ethernet+Cash drawer

optional：

USB+Bluetooth+Cash drawer

USB+WiFi+Cash drawer

Graphics

Support different density bitmap printing

Barcode Type

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ITF/CODABAR/CODE39/CODE93/CODE128/QRCODE

Character set

Standard: GB18030 Simplified Chinese, Traditional Chinese BIG5
Optional: Japanese font, Korean KSC5601(One or more Character set supported)

Character enlargement/rotation

Horizontal/vertical can be enlarged by 1-8 times, rotated and inverted

Media type

printing

Media width

79.5士0.5mm

Media roll outer diameter

Max. 82mm

Media thickness

0.06-0.08mm

Media handle

half-cut

Media output method

Top paper output(wall-mounted state is front paper output）

Sensor location

Middle

Wall mounting

Support

Power input

DC 24V 1.25A

Cash drawer output

DC 24V 0.5A

Working environment

0~40℃，30%~90%non-condensing

Storage Environment

-20~55℃，20%~93%non-condensing

Printer weight

1.05kg

Printer dimension

180mm×139mm×135mm

Packing dimension

260mm×210mm×230mm

Print head (reliability)

150km

Cutter (reliability)

1.5 million times

Printer certificate

CCC、RoHS

* The above parameters are subject to change without notice.
