Print method

Direct thermal

Print Instructions

TSPL

ESC/POS

Resolution

203DPI

Print speed

127mm/s（max）（settable:2-5inch/s）

default:120mm/s

Print width

56mm

48mm

Print head temperature detection

Thermistor

Print head position detection

Microswitch

Paper detection sensor

Thru Beam Sensors (left)

Memory

SRAM:4M  FLASH:4M

Button

Pause button, Feed button

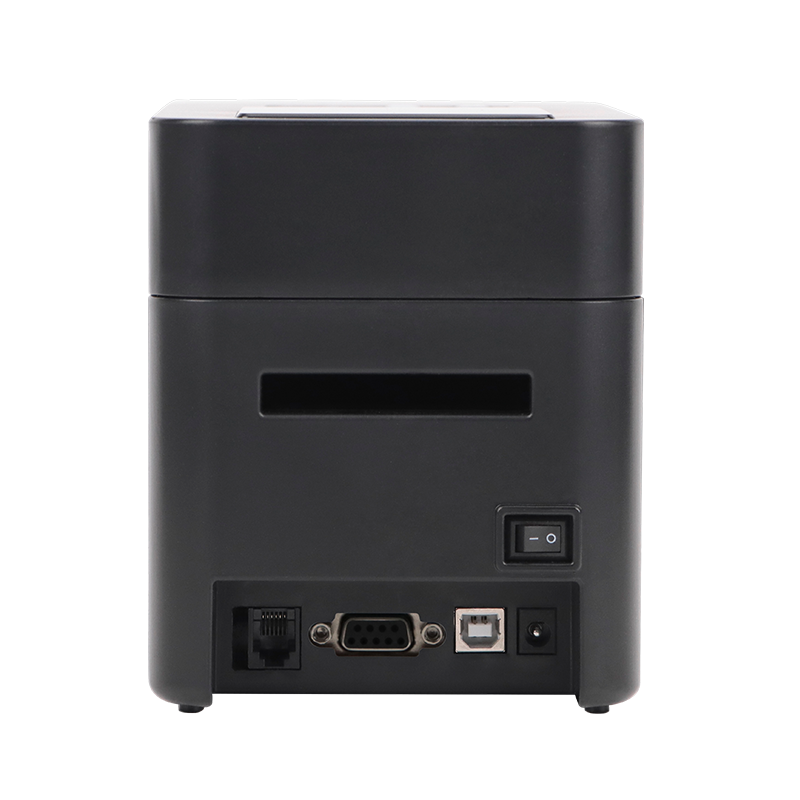

Interface

Standard：USB +Cash drawer
optional：USB+WiFi+Cash drawer、USB+Bluetooth+Cash drawer、USB+Ethernet+Serial、USB+Serial+Cash drawer

USB specifications

USB 2.0 Type-B

USB VID PID

VID:6868 PID:0500

Max. printing specifications

56mm×130mm

\

Graphics

Monochrome PCX, BMP and other graphics files printing can download to FLASH/DRAM

Support different density bitmap printing

Barcode

CODE128/EAN128/ITF/CODE39/

CODE93/EAN13/EAN13+2/EAN13+5/EAN
8/EAN8+2/EAN8+5/CODABAR/POSTNET/UPCA+2/

UPCA+5/UPCE+2/UPC-E
+5/CPOST/MSI/MSIC/PLESSEY/ITF14/EAN14

UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ITF/CODABAR/CODE39/COD
E93/CODE128

QR code

QRCODE、PDF417、Datamatrix

QRCODE

Character Set

FONT 0 to FONT 8
（1）GB18030：16x16、24x24（optional）
（2）GB18030：24x24、Traditional Chinese BIG5：24×24（optional）
（3）GB18030：24x24、Korean（KSC5601）：24×24（optional）

Font A：12×24
Simplified Chinese/Traditional Chinese：24×24

Character enlargement/rotation

1 ~10 times enlargement in portrait and landscape orientation;  0°, 90°, 180°, 270°degree rotation printing

1 ~8 times enlargement in portrait and landscape orientation, rotating printing, inverted printing

Paper type

Continuous, die-cut, fan-fold, black mark

Paper scroll core

12mm

Media width ( with liner)

20-62mm

Paper Thickness

0.06mm - 0.254mm

Paper Roll Outer Diameter

100mm

Media Handling

tear-off

Paper Output Method

Front paper output

Printer Power Input

DC12V 1.5A

Power Adapter Output

DC12V 1A

Cash Drawer Output

5~40℃，20~90%non-condensing

Storage Environment

-25~55℃，20~93%non-condensing

Air Pressure

86~106kPa

Bare Weight (excluding paper roll)

0.79kg

Packaging Weight (per unit)

1.3kg

External dimensions

106mm×198mm×140mm

Packaging dimensions

260mm×159mm×160mm

Outer box dimensions

660×270×508mm

Gross weight

16.2kg

Number of units per box

12

Print head (reliability)

30km

Printer certificate

CCC、SRRC、CE、FCC、ROHS

* The above parameters are subject to change without notice.
