Print command

Standard：TSPL
High-end：TSPL、CPCL

Resolution

203DPI

Print speed

Standard：152mm/s(Max)
High-end：200mm/s(Max)

Print width

80mm

Overheat protection

Thermistor

Head position detection

Microswitch

Media detection

Photosensor

Memory

Standard：DRAM 4MB、FLASH 4MB
High-end版：DRAM 4MB、FLASH 8MB

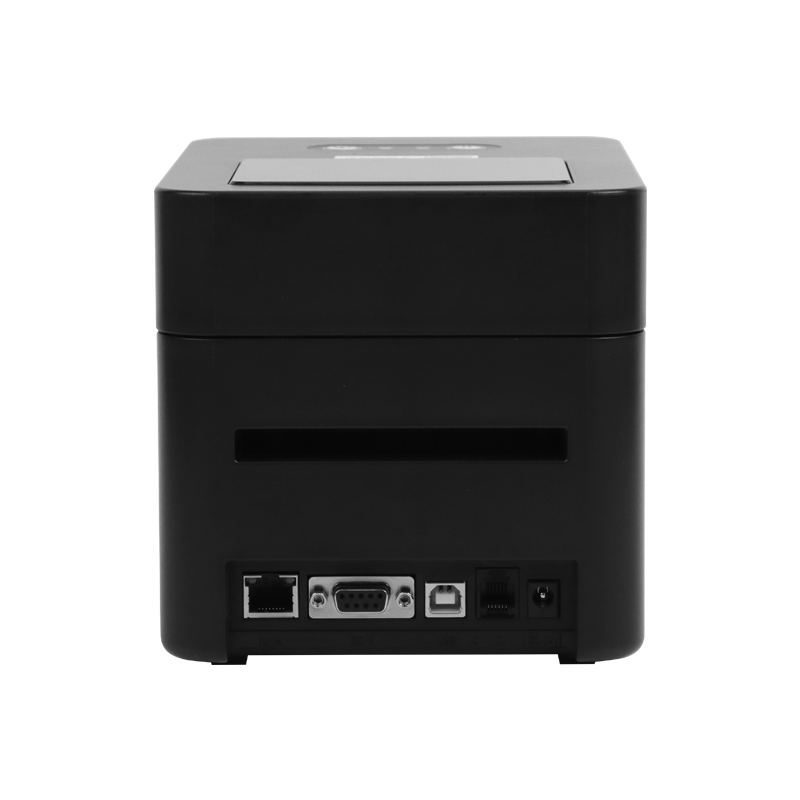

Interface

Standard：USB、USB+WiFi、USB+Bluetooth
High-end版：USB+Ethernet+Serial+Cash drawer、USB+Ethernet+Serial+Cash drawer+Peeler

Graphics

Monochrome PCX, BMP and other graphics files printing can download to FLASH/DRAM

Barcode

Barcode：
CODE128、EAN128、ITF、CODE39、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPC-A+2、UPC-A+5、 UPC-E、UPC-E+2、UPC-E+5、CPOST、MSI、MSIC、PLESSEY、ITF14、EAN14
QRcode：
Standard：QRCODE
High-end版：QRCODE、PDF417、DataMatrix

Character set

Standard：
（optional）Basic English numeric characters、Simplified Chinese（GB18030）：16x16、24x24
（optional）Basic English numeric characters、Traditional Chinese（BIG5）：24x24 、Korean（Korean）：24x24
High-end：
（optional）Basic English numeric characters、Simplified Chinese（GB18030）：16x16、24x24、32x32
（optional）Basic English numeric characters、Simplified Chinese（GB18030）：24x24、Traditional Chinese（BIG5）：24x24 、Korean（Korean）：24x24

Character enlargement / Rotation

1 ~10 times enlargement in portrait and landscape orientation;  0°, 90°, 180°, 270°degree rotation printing

Media type

Continuous, die-cut, fan-fold, black mark

Media width (with liner)

20-85mm

Media roll size

25.4mm

Meida core diameter

100mm

Media output method

Front paper output/tear-off/peel-off

Power supply

input：DC 24V 1.25A

Operation environment

5～45℃，20%～90%non-condensing

Storage environment

-20～55℃，20%～93%non-condensing

Printer N.W

0.922kg

Printer dimension

142×195×142mm

Packing dimension

295*213*175

Box dimension

665*312*371

Packing G.W.

11.36kg

quantity/box

6

Print head (reliability)

30KM

Printer certificate

CCC
